Product Details:
Payment & Shipping Terms:
|
| Cladding Material: | S32205 | Base Material: | SA516 Gr.70 |
|---|---|---|---|
| Size: | (4+24)*1600*4000mm | Max. Size: | 28sqm |
| Production Code: | ASTM B264, ASME SB264 | Surface Treatment: | Auto Polished |

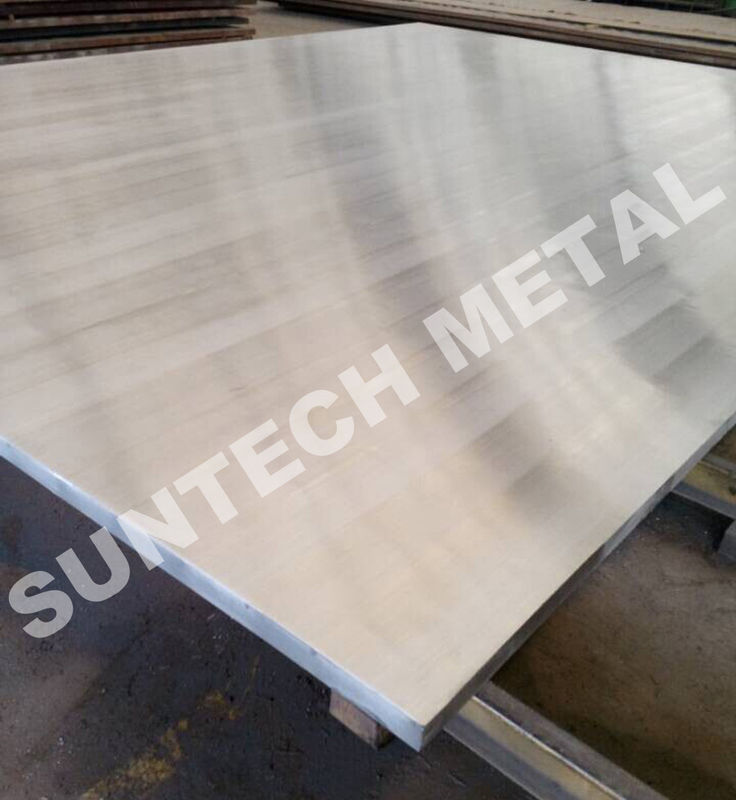

Duplex Stainless Steel Clad Plate S32205/SA516 Gr.70 for Anti-corrosion Application
Description:
Clad plates provide an economical solution for chemical processing. Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond. At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet. This jet contains the surface contaminants and oxides that would otherwise prevent bonding. The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.
Table for available type of Stainless steel clad plates:
|
Product Names: |
Stainless steel (Duplex) Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate |
|||
|
Production Codes: |
ASTM B263, ASME SB263, ASTM B264, ASME SB264, DIN , BS, JIS, GB/T, ISO, etc. |
|||
|
Stainless Steel Grades: |
Ferritic Stainless Steel:310, 310S, 410, 410S Austenitic Stainless Steel:304, 304L, 316, 316L, 321, 316Ti, 317L Duplex & other high grade stainless steel: 904L,1825, 2205 (S31803), 2507(S32750), N08367 (AL6XN), 254SMo, 926, etc. |
|||
|
Form |
Description |
Base Layer |
Base Layer Grade |
Maximum Size |
|
Clad Plate |
Stainless (Duplex) / Carbon Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000) |
|
Titanium / Stainless Steel (Duplex) Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000) |
|
|
Aluminum / Stainless Steel / Aluminum Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000) |
|
|
Copper/Aluminum /Stainless Steel/ Aluminum/Copper Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(6~100) x W(max W 1000) x L(max L 1000) |
|
|
Copper, Naval Brass |
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc. |
|||
Competitive Advantage:
|
Competitive Advantage |
|
|
1. Abundant experience |
- More than one decade of abundant experience in non-ferrous metal cladding and production; - Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel; - Produced according to ASTM, ASME, JIS, DIN, ISO other codes; - Over 20 items of inventory or practical new-type patents. |
|
2. Professional technical consulting service |
- Generate technical specification to adopt in local market; - Technical bid evaluation and clarification; - Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.; - Technical consulting on material, welding, NDE, etc.; - Non-conformance solution consulting; - Others that might be requested by customer. |
|
3. Independent inspection service |
- Technical clarification with customer; - Attend / organize pre-inspection meeting; - In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection; - Final inspection on finished products; - Packing inspection; - Progress report and schedule expediting; - Other inspection might be requested by customer. |
|
4. Transportation advantage |
- 296kms away from Shanghai seaport |
