Product Details:
Payment & Shipping Terms:
|
| Tube Sheet Material: | F316L | Shell Side Materia: | S31603/316L |
|---|---|---|---|
| Pressure: | 1.6 MPa -10 Mpa | Media: | Extremely Toxic |
| Structure: | Shell And Tube Heat Exchanger | Length: | 8000mm |
| Diameter: | 2500mm | Surface:: | 780sqm |
| Weight: | 30 Tons | Other Available Materials: | Titanium & Titanium Alloy, Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum |

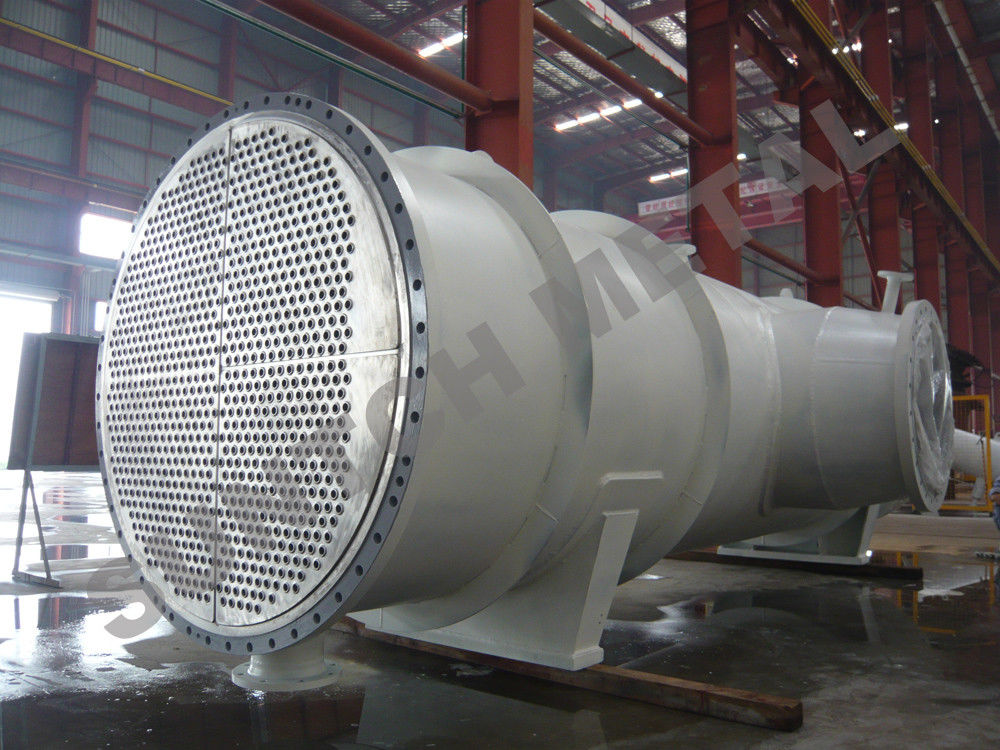

S31603 / 316L Stainless Steel Shell and Tube Condenser for MDI
1. Product Description
| Item Name | S31603/316L Stainless Steel Condenser |
| Application | MDI Industry |
| Tubesheet: | F316L |
| Tube Material | S31603/316L |
| Shell Material | S31603/316L |
| Diameter | 2500mm |
| Length | 8000mm |
| Surface | 780 sqm |
| Weight | 30tons |
| Other Available Materials | Titanium & Titanium alloy, Nickel & Nickel alloy, Copper-Nickel Alloy, Zirconium, Tantalum |

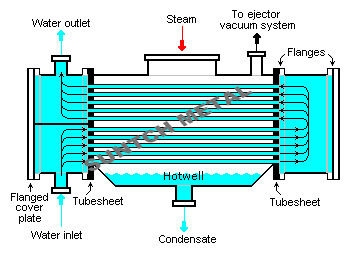

A condenser is a device or unit used to condense a substance from its gaseous to its liquid state, by cooling it. In so doing, the latent heat is given up by the substance, and will transfer to the condenser coolant. Condensers are typically heat exchangers which have various designs and come in many sizes ranging from rather small to very large industrial-scale units used in plant processes.
This product have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection, by Global Top 50 Chemicals for one decade.
Standard specification for our popular products:
|
Item |
Item Name |
Code |
|
1 |
Heat Exchanger |
TEMA,ASME,EN13445,PED |
|
2 |
Tower |
ASME,EN13445,PED |
|
3 |
Vessel |
ASME,EN13445,PED |
|
4 |
Storage Tank |
API620,650 |
|
5 |
Reactor |
ASME,EN13445,PED |
2. Manufacturing Facilities (Partial)
3. Testing Device (Partial)
4. Certificate(Partial)
Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.
5. Competitive Advantage
|
1. Abundant experience |
- More than one decade of abundant experience in non-ferrous metal process equipment designing and fabrication; - Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel, and their clad metals; - Design and fabricate according to ASME U, PED, TEMA, API620,API650,EN13445 - 12 items of inventory or practical new-type patents. |
|
2. Professional technical consulting service |
- Generate technical specification to adopt in local market; - Technical bid evaluation and clarification; - Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.; - Technical consulting on material, welding, NDE, etc.; - Non-conformance solution consulting; - Others that might be requested by customer. |
|
3. Independent inspection service |
- Technical clarification with customer; - Attend / organize pre-inspection meeting; - In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection; - Final inspection on finished products; - Packing inspection; - Progress report and schedule expediting; - Other inspection might be requested by customer. |
|
4. Transportation advantage |
- 296kms away from Shanghai seaport |
