Product Details:
Payment & Shipping Terms:
|
| Size Available: | Φ 400~Φ 10000mm | Production Code: | UG-81 |
|---|---|---|---|
| Storage Medium: | Nontoxic | Inner Surface Treatment: | Auto Polished |

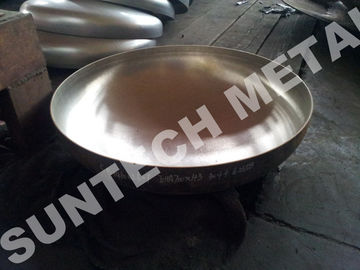

Explosion Bonded 304 Austenitic Stainless Steel Elliptical Clad Head for Evaporator
| Product Name | 304 Austenitic Stainless Steel Clad Head | Shape | 2:1 Elliptical Head |
| Cladding Metal | 304 | Production Code | UG-81 |
| Base Metal | Q235B (516 Gr.70) | Storage Medium | Nontoxic |
| Size | (3+13)*ID700*SF50.8mm | Inner Surface Treatment | Auto Polished |
Table for available type of clad heads and cladded metals:
|
Product Names: |
Explosion Bonded Clad Head for Pressure Vessels |
||
|
Production Codes: |
ASME UG-81, etc. |
||
|
Type |
Abbreviation |
Available Clad Metals |
Production Method |
|
Elliptical clad head |
EHA, EHB |
Titanium & Steel Clad Ferritic Stainless Steel & Steel Clad Austenitic (Duplex) Stainless Steel & Steel Clad Nickel Alloy & Steel Clad Zirconium & Steel Clad Tantalum & Steel Clad Copper & Steel Clad |
Cold Pressing, Hot Pressing, Hot Spinning |
|
Standard Flange&Dished |
DHA, DHB |
||
|
Dish only |
PSH,SHD |
||
|
Flange reverse dished |
WD |
||
|
Joggled head |
DHD |
||
|
Conical |
CHA,CHB,CHC,CHD |
||
|
Flange only |
FH |
||
|
Hemispherical |
HH |
||
|
Shallow Flange& Dished |
MD,XD |
||
|
Approximate Elliptical |
AH |
||
|
Dished and Flared |
DF |
||
Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
