Zirconium and CS Anticorrosion Pressure Vessel Clad Head 2/1 EHA R60702/Zr702

China Zirconium and CS Anticorrosion Pressure Vessel Clad Head 2/1 EHA R60702/Zr702 supplier

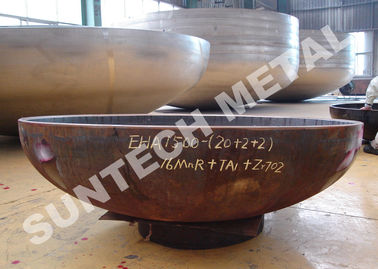

Large Image :  Zirconium and CS Anticorrosion Pressure Vessel Clad Head 2/1 EHA R60702/Zr702

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: E001

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Supply Ability: 35000tons/Year
Contact Now
Detailed Product Description
Product Name: R60702 Zirconium And Carbon Steel Clad Head Shape: 2:1 Elliptical Head
Cladding Material: R60702 Base Material: 16MnR (A516 Gr.70)
Size: (2+2+20)*ID1500*SF50.8mm Size Available: Φ 400~Φ 10000mm
Production Code: UG-81 Storage Medium: Toxic
Inner Surface Treatment: Auto Polished

2:1 EHA R60702/Zr702 Zirconium and CS Anticorrosion Pressure Vessel Clad Head



Detailed Product Description:



Explosion Bonded / Bimetallic / Cladded Head



Flying Layer: R60702

Base Layer: 16MnR (A516 Gr.70)

Size: (2+2+20)*ID1500*SF50.8mm

Edge Bevelling: as per drawing

Packing: Seaworthy packing

Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.




Table for available type of clad heads and cladded metals:



Product Names:

Explosion Bonded Clad Head for Pressure Vessels

Production Codes:

ASME UG-81, etc.

Type

Abbreviation

Available Clad Metals

 Production Method

Elliptical clad head

EHA, EHB

Titanium & Steel Clad

Ferritic Stainless Steel & Steel Clad

Austenitic (Duplex) Stainless Steel & Steel Clad

Nickel Alloy & Steel Clad

Zirconium & Steel Clad

Tantalum & Steel Clad

Copper & Steel Clad

Cold Pressing, Hot Pressing, Hot Spinning

Standard Flange&Dished

DHA, DHB

Dish only

PSH,SHD

Flange reverse dished

WD

Joggled head

DHD

Conical

CHA,CHB,CHC,CHD

Flange only

FH

Hemispherical

HH

Shallow Flange& Dished

MD,XD

Approximate Elliptical

AH

Dished and Flared

DF



Competitive Advantage:



1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal cladding and production;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel;

- Produced according to ASTM, ASME, JIS, DIN, ISO other codes;

- Over 20 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
