| Size: | (3.2+12.7)*ID3048*SF50.8mm | Shape: | 2:1 Elliptical Head |
|---|---|---|---|
| Cladding Material: | 410S | Base Material: | A516 Gr.70 |
| Size Available: | Φ 400~Φ 10000mm | Production Code: | UG-81 |
| Storage Medium: | Nontoxic | Inner Surface Treatment: | Auto Polished |

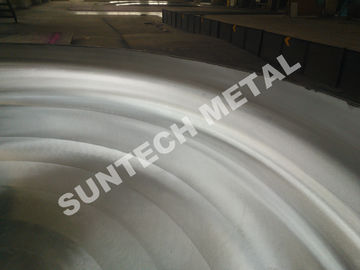

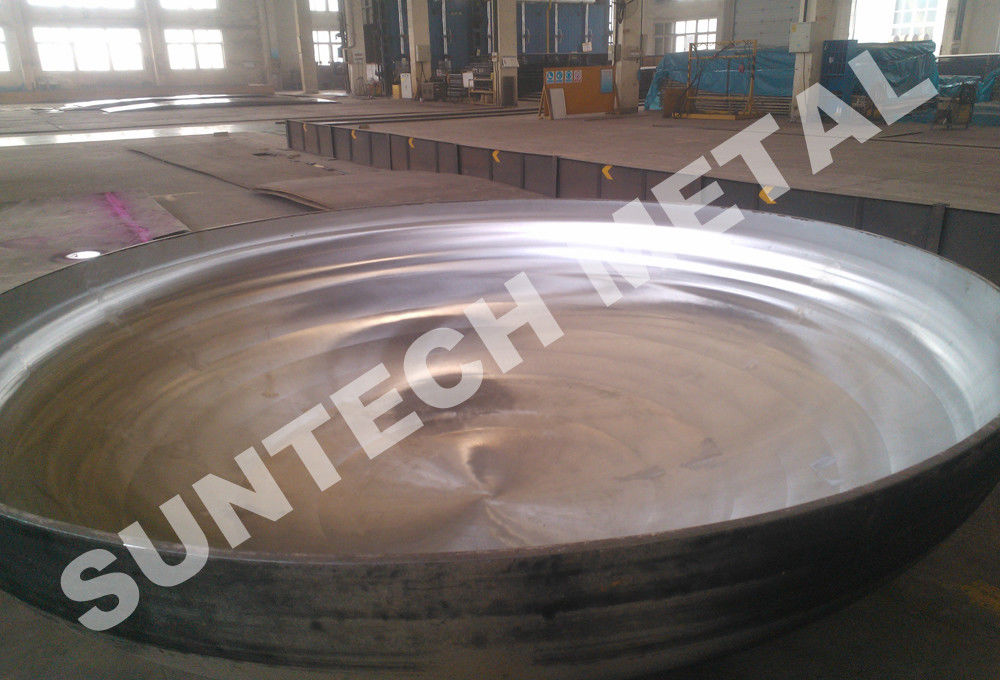

410S Martensitic Stainless Steel and Carbon Steel Pressure Vessel Clad Head for Distillation Tower
Explosion Bonded / Bimetallic / 410S Cladded Plate / Large-sized
Flying Layer: 410S
Base Layer: A516 Gr.70
Size:(3.2+12.7)*ID3048*SF50.8mm
Edge Treatment: Bevelling as per drawing
Packing: Seaworthy packing
Application: Distillation Tower
Table for available type of clad heads and cladded metals:
|
Product Names: |
Explosion Bonded Clad Head for Pressure Vessels |
||
|
Production Codes: |
ASME UG-81, etc. |
||
|
Type |
Abbreviation |
Available Clad Metals |
Production Method |
|
Elliptical clad head |
EHA, EHB |
Titanium & Steel Clad Ferritic Stainless Steel & Steel Clad Austenitic (Duplex) Stainless Steel & Steel Clad Nickel Alloy & Steel Clad Zirconium & Steel Clad Tantalum & Steel Clad Copper & Steel Clad |
Cold Pressing, Hot Pressing, Hot Spinning |
|
Standard Flange&Dished |
DHA, DHB |
||
|
Dish only |
PSH,SHD |
||
|
Flange reverse dished |
WD |
||
|
Joggled head |
DHD |
||
|
Conical |
CHA,CHB,CHC,CHD |
||
|
Flange only |
FH |
||
|
Hemispherical |
HH |
||
|
Shallow Flange& Dished |
MD,XD |
||
|
Approximate Elliptical |
AH |
||
|
Dished and Flared |
DF |
||
Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
Competitive Advantage:
|
1. Abundant experience |
- More than one decade of abundant experience in non-ferrous metal cladding and production; - Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel; - Produced according to ASTM, ASME, JIS, DIN, ISO other codes; - Over 20 items of inventory or practical new-type patents. |
|
2. Professional technical consulting service |
- Generate technical specification to adopt in local market; - Technical bid evaluation and clarification; - Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.; - Technical consulting on material, welding, NDE, etc.; - Non-conformance solution consulting; - Others that might be requested by customer. |
|
3. Independent inspection service |
- Technical clarification with customer; - Attend / organize pre-inspection meeting; - In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection; - Final inspection on finished products; - Packing inspection; - Progress report and schedule expediting; - Other inspection might be requested by customer. |
|
4. Transportation advantage |
- 296kms away from Shanghai seaport |
