Titanium Clad Shell Tube Heat Exchanger for Propylene Oxide Industry

China Titanium Clad Shell Tube Heat Exchanger for Propylene Oxide Industry supplier

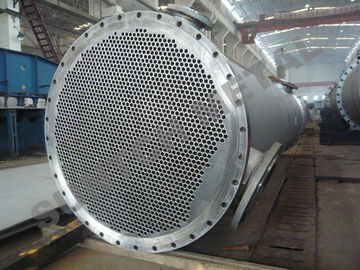

Large Image :  Titanium Clad Shell Tube Heat Exchanger for Propylene Oxide Industry

Product Details:

Place of Origin: China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: PV004

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: 90 working days after received payment
Payment Terms: L/C, T/T, D/P, etc
Supply Ability: 300 Pieces/Year
Contact Now
Detailed Product Description
Tube Sheet Material: Titanium Gr.2 Clad SA266 Tube Material: Titanium Gr.2
Pressure: 1.6 MPa -10 Mpa Media: Toxic
Structure: Shell And Tube Heat Exchanger Length: 8500mm
Diameter: 2800mm Surface:: 800sqm
Weight: 12 Tons Other Available Materials: Stainless Steel (Duplex), Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum

Titanium Clad Shell Tube Heat Exchanger for Propylene Oxide Industry





1. Product Description

Item Name Titanium Clad Heater
Application  Propylene Oxide Industry
Tubesheet:  Titanium Gr.2 clad SA266
Tube Material Titanium Gr.2
Shell Material Titanium and Carbon steel Clad
Diameter 2800mm
Length 8500mm
Surface 800 sqm
Weight 12tons
Other Available Materials Stainless Steel (Duplex), Nickel & Nickel alloy, Copper-Nickel Alloy, Zirconium, Tantalum



This heat exchanger is a device used to transfer heat between one or more fluids, which consist of series of tubes. One set of these tubes contains the fluid that must be either heated or cooled. The second fluid runs over the tubes that are being heated or cooled so that it can either provide the heat or absorb the heat required. A set of tubes is called the tube bundle and can be made up of several types of tubes: plain, longitudinally finned, etc. Shell and tube heat exchangers are typically used for high-pressure applications.



Standard specification for our popular products:



Item

Item Name

Code

1

Heat Exchanger

TEMA,ASME,EN13445,PED

2

Tower

ASME,EN13445,PED

3

Vessel

ASME,EN13445,PED

4

Storage Tank

API620,650

5

Reactor

ASME,EN13445,PED





2. Manufacturing Facilities (Partial)



Titanium Clad Shell Tube Heat Exchanger for Propylene Oxide Industry











































3. Testing Device  (Partial)



Titanium Clad Shell Tube Heat Exchanger for Propylene Oxide Industry



4.  Certificate(Partial)


Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.



Titanium Clad Shell Tube Heat Exchanger for Propylene Oxide Industry



5. Competitive Advantage



1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal process equipment designing and fabrication;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel, and their clad metals;

- Design and fabricate according to ASME U, PED, TEMA, API620,API650,EN13445

- 12 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
