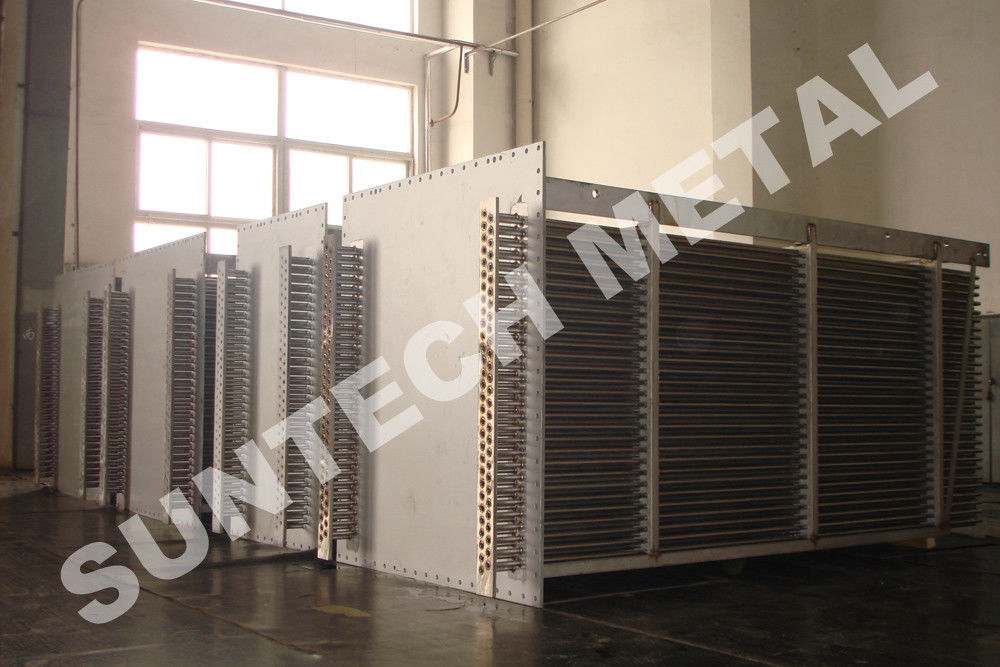

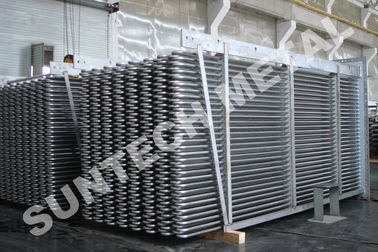

High Pressure Shell And Tube Heat Exchanger 4000mm Length 18 Tons Weight

China High Pressure Shell And Tube Heat Exchanger 4000mm Length 18 Tons Weight supplier
High Pressure Shell And Tube Heat Exchanger 4000mm Length 18 Tons Weight supplier High Pressure Shell And Tube Heat Exchanger 4000mm Length 18 Tons Weight supplier

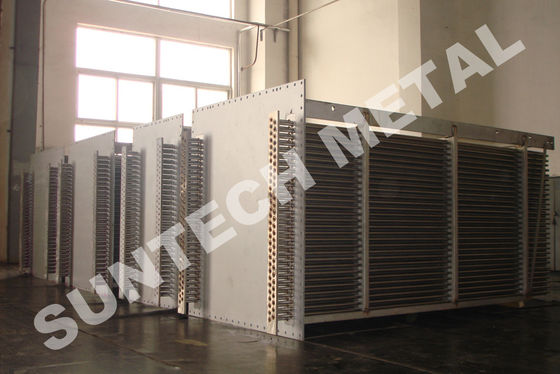

Large Image :  High Pressure Shell And Tube Heat Exchanger 4000mm Length 18 Tons Weight

Product Details:

Place of Origin: China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: PV0011

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: 90 working days after received payment
Payment Terms: L/C, T/T, D/P, etc
Supply Ability: 300 Pieces/Year
Contact Now
Detailed Product Description
Tube Sheet Material: 316L Stainless Steel Pipe Material: 316L Stainless Steel
Pressure: 1.6 MPa -10 Mpa Media: Toxic
Structure: Pipe Heat Exchanger Length: 4000mm
Width: 2500mm Surface:: 450sqm
Weight: 18 Tons Other Available Materials: Titanium & Titanium Alloy, Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum

High Pressure Shell And Tube Heat Exchanger 4000mm Length 18 Tons Weight





1. Product Description

Item Name 316L Stainless Steel Pipe heat exchangers
Application Paper and Pulping Industry
Pipe Material   S316L
Tube Sheet Material  S316L
Height 2500mm
Length 4000mm
Width 2500mm
Weight 18tons
Other Available Materials Titanium & Titanium alloy, Nickel & Nickel alloy, Copper-Nickel Alloy, Zirconium, Tantalum



Main structure

It is made up of several parallel corrugated pipes in the jacket of a shell pipe, to form a compound pipe. The compound pipes are connected with each as a step, the inner pipe of each step connected by U pattern pipe, and the outer pipe connected with material apter removing the pipe hole cover. The medium flows in the outer pipe in the anti clean direction, takes heat exchange through the inner pipe. The inner wall of the material pipe adopts advance polish Ra<0.4um, the pipe edge joint adopts imported automatic joint machine jointing, so to ensure the complete clean of the heat-exchanging pipe.



Standard specification for our popular products:



Item

Item Name

Code

1

Heat Exchanger

TEMA,ASME,EN13445,PED

2

Tower

ASME,EN13445,PED

3

Vessel

ASME,EN13445,PED

4

Storage Tank

API620,650

5

Reactor

ASME,EN13445,PED



2.  Certificate(Partial)


Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.





3. Competitive Advantage



1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal process equipment designing and fabrication;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel, and their clad metals;

- Design and fabricate according to ASME U, PED, TEMA, API620,API650,EN13445

- 12 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
