Product Details:
Payment & Shipping Terms:
|
| Material: | 316L Stainless Steel | Application: | 316L Stainless Steel |
|---|---|---|---|
| Pressure: | 10MPa-100MPa | Media: | Toxic |
| Structure: | 6 Bundle Connection | Weight: | 50Tons |
| Other Available Materials: | Titanium & Titanium Alloy, Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum |

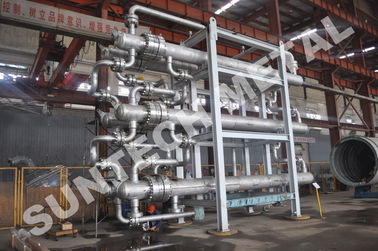

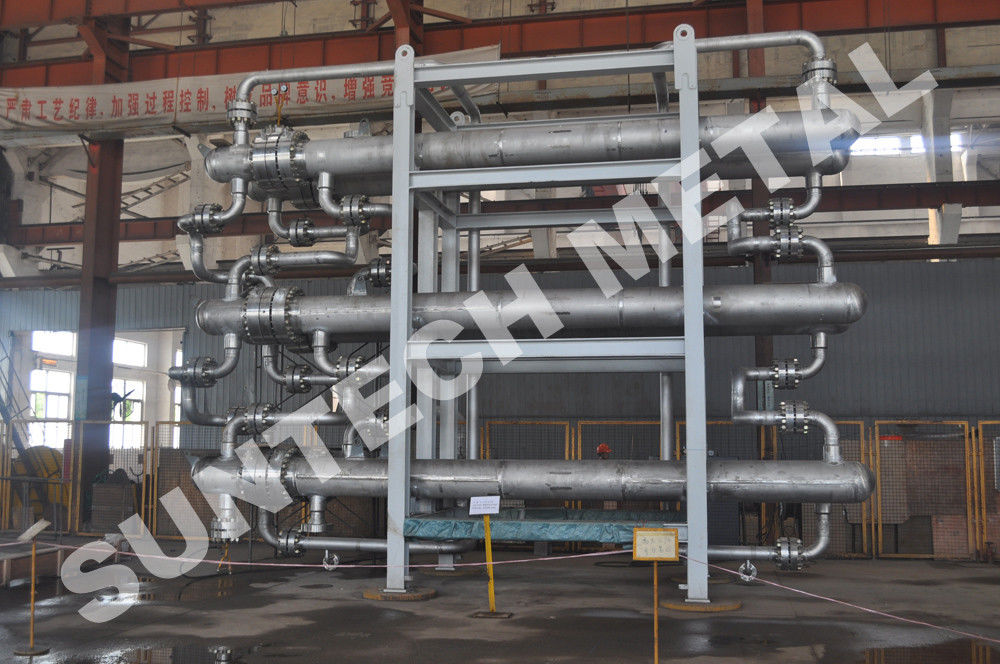

High Efficiency Heat Exchanger 6 Bundle Connection 10MPa - 100MPa
1. Product Description
| Item Name | 316L Stainless Steel High pressure Heat exchanger – 6 bundle connection |
| Application | MDI |
| Material | 316L |
| Dimension | Dimension: W6000*L12000*H5000mm *S500 sqm |
| Weight | 50tons |
| Media | Toxic |
| Pressure | High:10 MPa-100 Mpa |
| Other Available Materials | Titanium & Titanium alloy, Stainless Steel, Zirconium, Tantalum |
Main structure
It is made up of several parallel corrugated pipes in the jacket of a shell pipe, to form a compound pipe. The compound pipes are connected with each as a step, the inner pipe of each step connected by U pattern pipe, and the outer pipe connected with material apter removing the pipe hole cover. The medium flows in the outer pipe in the anti clean direction, takes heat exchange through the inner pipe. The inner wall of the material pipe adopts advance polish Ra<0.4um, the pipe edge joint adopts imported automatic joint machine jointing, so to ensure the complete clean of the heat-exchanging pipe.
Standard specification for our popular products:
|
Item |
Item Name |
Code |
|
1 |
Heat Exchanger |
TEMA,ASME,EN13445,PED |
|
2 |
Tower |
ASME,EN13445,PED |
|
3 |
Vessel |
ASME,EN13445,PED |
|
4 |
Storage Tank |
API620,650 |
|
5 |
Reactor |
ASME,EN13445,PED |
2. Certificate(Partial)
Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.
3. Competitive Advantage
1). More effective
2). Easy operation
3). Made according to request of the customer
