Chemical Processing Equipment  Zirconium 702 Shell And Tube Heat Exchanger for Acetic Acid

China Chemical Processing Equipment  Zirconium 702 Shell And Tube Heat Exchanger  for Acetic Acid supplier

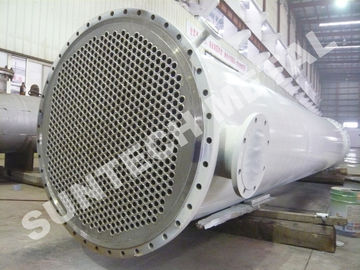

Large Image :  Chemical Processing Equipment  Zirconium 702 Shell And Tube Heat Exchanger for Acetic Acid

Product Details:

Place of Origin: China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: PV0024

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: 90 working days after received payment
Payment Terms: L/C, T/T, D/P, etc
Supply Ability: 300 Pieces/Year
Detailed Product Description
Tube Sheet Material: Zirconium 702 Tube Material: Zirconium 702
Pressure: 1.6 MPa -10 Mpa Media: Non-Toxic
Structure: Shell And Tubular Heat Exchanger Length: 1500mm
Diameter: 5000mm Surface:: 150sqm
Weight: 6 Tons Other Available Materials: Stainless Steel (Duplex), Nickel & Nickel Alloy, Copper-Nickel Alloy, Tantalum

Chemical Processing Equipment  Zirconium 702 Shell And Tube Heat Exchanger  for Acetic Acid





1. Product Description

Material   Zirconium 702 Heater
Dimension  OD1500*Length 5000mm*S150 sqm
Weight 6 tons
Media Non-Toxic
Pressure  High:1.6MPa-10Mpa
Other Available Materials Titanium & Titanium alloy, Stainless Steel,  Tantalum



This heat exchanger is a device used to transfer heat between one or more fluids, which consist of series of tubes. One set of these tubes contains the fluid that must be either heated or cooled. The second fluid runs over the tubes that are being heated or cooled so that it can either provide the heat or absorb the heat required. A set of tubes is called the tube bundle and can be made up of several types of tubes: plain, longitudinally finned, etc. Shell and tube heat exchangers are typically used for high-pressure applications.



Standard specification for our popular products:



Item

Item Name

Code

1

Heat Exchanger

TEMA,ASME,EN13445,PED

2

Tower

ASME,EN13445,PED

3

Vessel

ASME,EN13445,PED

4

Storage Tank

API620,650

5

Reactor

ASME,EN13445,PED





2.Manufacturing Facilities (Partial)

Chemical Processing Equipment  Zirconium 702 Shell And Tube Heat Exchanger  for Acetic Acid







3. Testing Device  (Partial)



Chemical Processing Equipment  Zirconium 702 Shell And Tube Heat Exchanger  for Acetic Acid



4.  Certificate(Partial)


Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.





5. Competitive Advantage

a.Abundant experience: more than one decade of abundant experience in non-ferrous metal

cladding and production;
b. Technical consulting service:  technical consulting on material, welding, NDE, etc;
c. Independent inspection service; in-process inspection, final inspection;
d. Transportation advantage: 296kms away from Shanghai seaport
