| Cladding Material: | SB265 Gr.7 | Base Material: | SA516 Gr.70N |
|---|---|---|---|
| Size: | (6+80)*1800mm | Max. Size: | 28sqm |
| Production Code: | ASTM B898, ASME SB898 | Inner Surface Treatment: | Auto Polished |

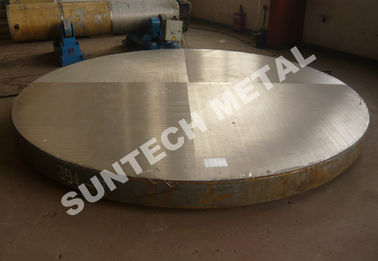

SB265 Gr.7 Titanium Clad Plate Tubesheet for Anti-crevice Corrosion Application
Description:
Cladding Matreial: SB265 Gr.7
Base Material: SA516 Gr.70N
Size: (6+80)*OD1800mm
Material advantage: Anti-crevice corrosion
Table for available type of Titanium clad plates:
|
Product Names: |
Titanium Clad Plate/Sheet, Titanium Clad Tube Sheet/ Tube Plate |
|||
|
Production Codes: |
ASTM B898, ASME SB898, ASTM B264, ASME SB264, ASTM B265, ASME SB265, ASTM B432, ASME SB432, DIN , BS, JIS, GB/T, ISO, etc. |
|||
|
Titanium Grades: |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
|||
|
Form |
Description |
Base Layer |
Base Layer Grade |
Maximum Size |
|
Clad Plate |
Titanium / Carbon Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) |
|
Titanium / Stainless Steel (Duplex) Clad |
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) |
|
|
Titanium / Copper (Naval Brass) Clad |
Copper, Naval Brass |
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc. |
(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000) |
|
|
Titanium / Aluminum Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~14)/(6~50) x W(max W 1500) x L (max L 4000) |
|
|
Titanium / Nickel Clad |
Nickel and its alloy |
N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc |
(1.5~14)/(6~50) x W(max W 2000) x L (max L 5000) |
|
|
Titanium / Carbon Steel / Titanium Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 6000) |
|
|
Titanium / Copper / Titanium Clad |
Copper, Naval Brass |
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc. |
(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000) |
|
|
Titanium / Carbon Steel / Stainless Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 7000) |
|
|
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
|||
|
Zirconium / Titanium / Carbon Steel Clad |
Zirconium |
R60702 |
(1.5~14)/(1.5~2)/(2~200) x W(max W 4110) x L(max L 7000) |
|
|
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
|||
|
Aluminum / Titanium / Carbon Steel Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000) |
|
|
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
|||
|
Aluminum / Titanium / Copper Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000) |
|
|
Copper, Naval Brass |
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc. |
|||
|
Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Kitchenware, Power Industry, Building Materials,Electrolysis Industry, Hydrometallurgy etc. |
||||
