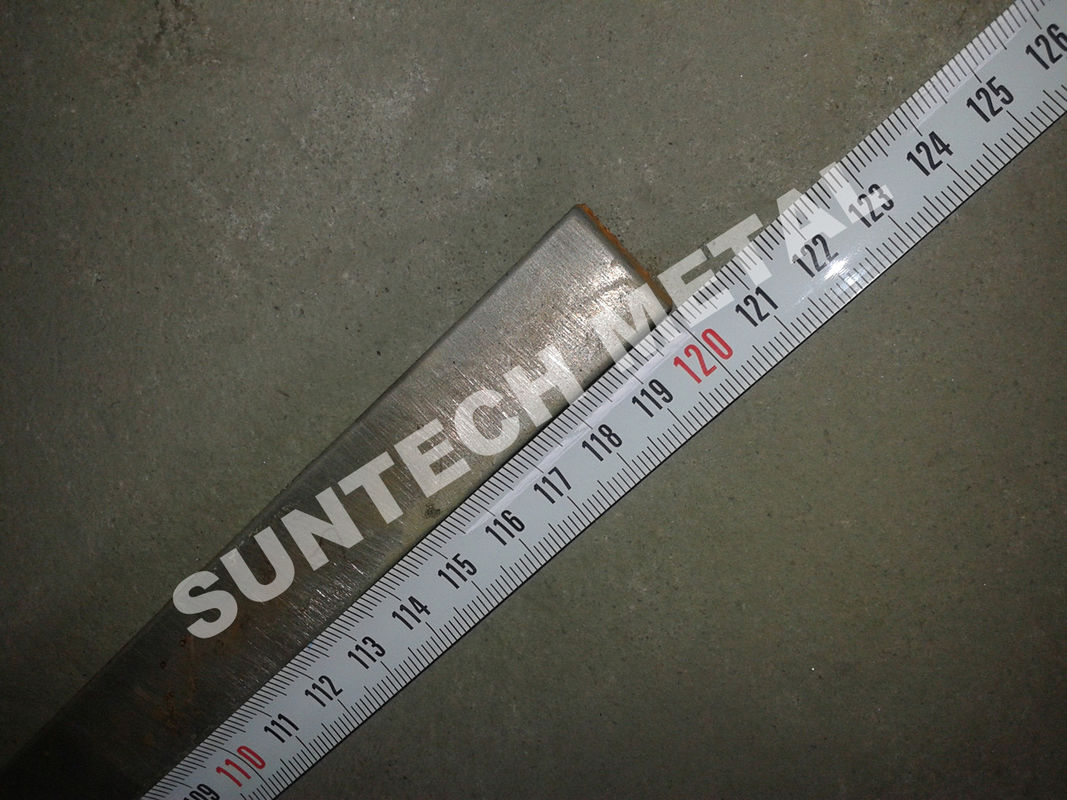

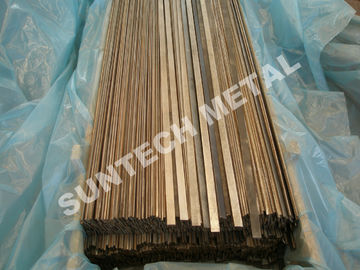

Explosin Bonded SB265 Gr.1 / Q235B Titanium Clad Strip for Electrolyation

China Explosin Bonded SB265 Gr.1 / Q235B Titanium Clad Strip for Electrolyation supplier
Explosin Bonded SB265 Gr.1 / Q235B Titanium Clad Strip for Electrolyation supplier Explosin Bonded SB265 Gr.1 / Q235B Titanium Clad Strip for Electrolyation supplier

Large Image :  Explosin Bonded SB265 Gr.1 / Q235B Titanium Clad Strip for Electrolyation

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0020

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 35000tons/Year
Contact Now
Detailed Product Description
Cladding Material: SB265 Gr.1 Base Material: Q235B
Size: (1.5mm+2.5mm)*1200mm Production Code: ASTM B898, ASME SB898
Edge Treatment: Waterjet Cutting Surface Treatment: Auto Polished

Explosin Bonded SB265 Gr.1/Q235B Titanium Clad Strip for Electrolyation Application



QUICK PRODUCT DETAILS:



Explosion Bonded / Bimetallic / Cladded Strip / Waterjet Cut



Cladding metal:SB265 Gr.1

Base metal:Q235B

Size:(1.5mm+2.5mm)*1200mm

Production code:ASTM B898, ASME SB898

Tensile Strength: over 140MPa

Edge Treatment: Waterjet Cutting

Packing:Plywood case packing







Table for available type of Titanium clad plates:





Product Names:

Titanium Clad Plate/Sheet, Titanium Clad Tube Sheet/ Tube Plate

Production Codes:

ASTM B898, ASME SB898, ASTM B264, ASME SB264, ASTM B265, ASME SB265, ASTM B432, ASME SB432,  DIN , BS, JIS, GB/T, ISO, etc.

Titanium Grades:

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Titanium / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Titanium / Stainless Steel (Duplex) Clad

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Titanium / Copper (Naval Brass) Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)

Titanium / Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~14)/(6~50) x W(max W 1500) x L (max L 4000)

Titanium / Nickel Clad

Nickel and its alloy

N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc

(1.5~14)/(6~50) x W(max W 2000) x L (max L 5000)

Titanium / Carbon Steel / Titanium Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 6000)

Titanium / Copper / Titanium Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)

Titanium / Carbon Steel / Stainless Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 7000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Zirconium / Titanium / Carbon Steel Clad

Zirconium

R60702

(1.5~14)/(1.5~2)/(2~200) x W(max W 4110) x L(max L 7000)

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Aluminum / Titanium / Carbon Steel Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000)

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Aluminum / Titanium / Copper Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000)

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.





Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.



Competitive Advantage:

  1. Abundant experience: more than one decade of abundant experience in non-ferrous metal cladding and production;

  2. Technical consulting service:  technical consulting on material, welding, NDE, etc;

  3. Independent inspection service: in-process inspection, final inspection;

  4. Transportation advantage: 296kms away from Shanghai seaport.
