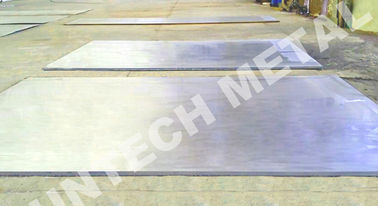

Stainless Steel Clad Plate SA240 304L/SA516 Gr.70 HIC for Oil Refinery
Detailed product description:
| Cladding Metal | SA240 304L | Production Code | ASTM B264, ASME SB264 |
| Base Metal | SA516 Gr.70 HIC | Bonding Rate | Level A |
| Size | (3+28)*3300*5000mm | Surface Treatment | Auto Polished |
| Max. Size | 28sqm | Packing | Plywood case packing |
Table for available type of Stainless steel clad plates:
|
Product Names: |
Stainless steel (Duplex) Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate |
|||
|
Production Codes: |
ASTM B263, ASME SB263, ASTM B264, ASME SB264, DIN , BS, JIS, GB/T, ISO, etc. |
|||
|
Stainless Steel Grades: |
Ferritic Stainless Steel:310, 310S, 410, 410S Austenitic Stainless Steel:304, 304L, 316, 316L, 321, 316Ti, 317L Duplex & other high grade stainless steel: 904L,1825, 2205 (S31803), 2507(S32750), N08367 (AL6XN), 254SMo, 926, etc. |
|||
|
Form |
Description |
Base Layer |
Base Layer Grade |
Maximum Size |
|
Clad Plate |
Stainless (Duplex) / Carbon Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000) |
|
Titanium / Stainless Steel (Duplex) Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000) |
|
|
Aluminum / Stainless Steel / Aluminum Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000) |
|
|
Copper/Aluminum /Stainless Steel/ Aluminum/Copper Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(6~100) x W(max W 1000) x L(max L 1000) |
|
|
Copper, Naval Brass |
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc. |
|||
Product advantage:
-Clad plates provide an economical solution for chemical processing;
-Stainless steel surface contains sufficient chromium to form a passive film of chromium oxide, preventing further surface corrosion by blocking oxygen diffusion to the steel surface and blocks corrosion from spreading into the metal's internal structure;
- Technical consulting on material, thickness suggestion, welding, NDE, etc.
Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
