N08904 904L / SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion

Good quality Double Tube Sheet Heat Exchanger for sales
Good quality Double Tube Sheet Heat Exchanger for sales
The clad plates and heads have been mounted on our local site. Our owner is very satisifed with the quality. It is a pleasure working with you!

—— Adrian

The vessels arrived in our factory on March 26, and are already installed. We are grateful for your delivery of 2 weeks in advance and saved our time!

—— Virgile

I'm Online Chat Now

N08904 904L / SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion

China N08904 904L / SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion supplier
N08904 904L / SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion supplier N08904 904L / SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion supplier

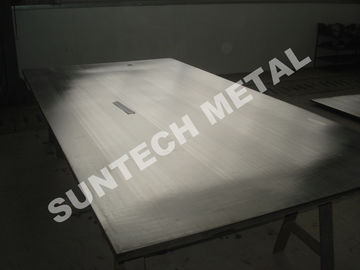

Large Image :  N08904 904L / SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0033

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P,etc
Supply Ability: 35000tons/Year
Contact Now
Detailed Product Description
Cladding Material: N08904/904L Base Material: SA516 Gr.70
Size: (3+12.7)*2300*4000mm Max. Size: 28sqm
Production Code: ASTM B264, ASME SB264 Surface Treatment: Auto Polished

N08904 (904L) /SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion Application



Detailed Product Description:



Flying Layer:  N08904/904L

Base Layer: SA516 Gr.70

Size: (3+12.7)*2300*4000mm

Packing: Seaworthy packing





Table for available type of Stainless steel clad plates:



Product Names:

Stainless steel (Duplex) Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate

Production Codes:

ASTM B263, ASME SB263, ASTM B264, ASME SB264, DIN , BS, JIS, GB/T, ISO, etc.

Stainless Steel Grades:

Ferritic Stainless Steel:310, 310S, 410, 410S

Austenitic Stainless Steel:304, 304L, 316, 316L, 321, 316Ti, 317L

Duplex & other high grade stainless steel: 904L,1825, 2205 (S31803), 2507(S32750), N08367 (AL6XN), 254SMo, 926, etc.

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Stainless (Duplex) / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

Titanium / Stainless Steel (Duplex) Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

Aluminum / Stainless Steel / Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

Copper/Aluminum /Stainless Steel/ Aluminum/Copper Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~100) x W(max W 1000) x L(max L 1000)

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.





Production Procedure:





N08904 904L / SA516 Gr.70 Stainless Steel Clad Plate for Anti-corrosion
