Home ProductsNickel Alloy Clad Plate

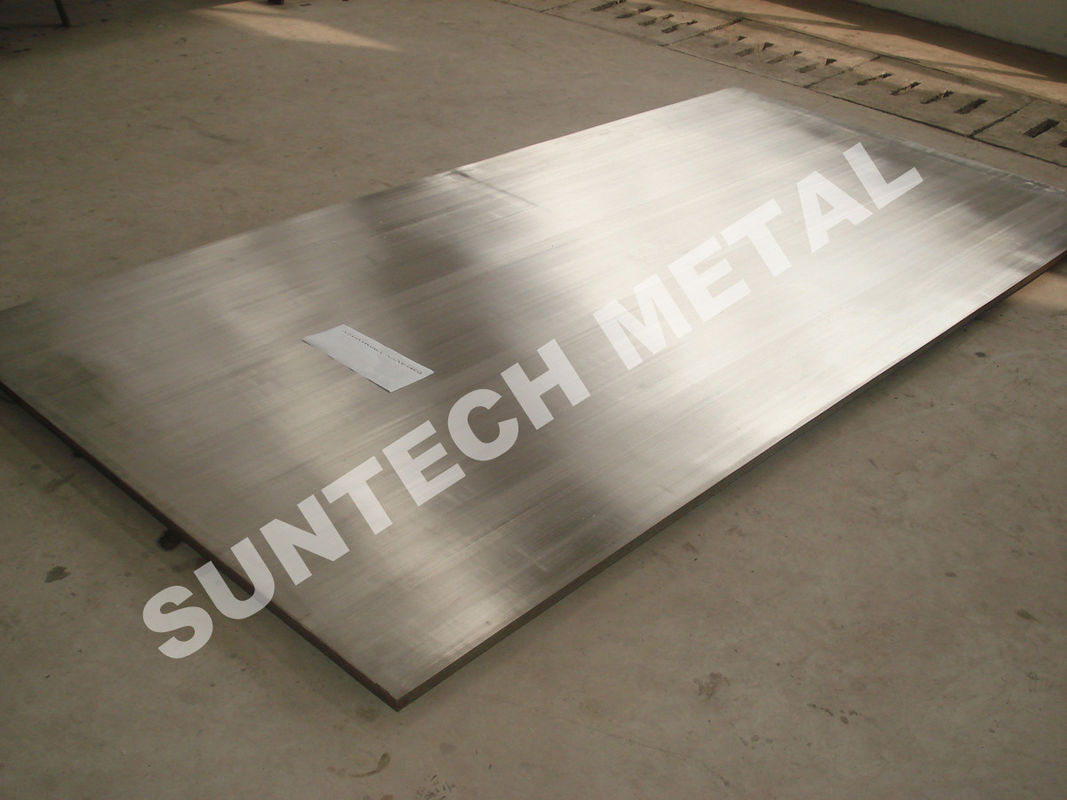

N10675 B-3 / SA516 Gr.60 Nickel Alloy Clad Plate Auto polished

Good quality Double Tube Sheet Heat Exchanger for sales
Good quality Double Tube Sheet Heat Exchanger for sales
The clad plates and heads have been mounted on our local site. Our owner is very satisifed with the quality. It is a pleasure working with you!

—— Adrian

The vessels arrived in our factory on March 26, and are already installed. We are grateful for your delivery of 2 weeks in advance and saved our time!

—— Virgile

I'm Online Chat Now

N10675 B-3 / SA516 Gr.60 Nickel Alloy Clad Plate Auto polished

China N10675 B-3 / SA516 Gr.60 Nickel Alloy Clad Plate Auto polished supplier
N10675 B-3 / SA516 Gr.60 Nickel Alloy Clad Plate Auto polished supplier N10675 B-3 / SA516 Gr.60 Nickel Alloy Clad Plate Auto polished supplier

Large Image :  N10675 B-3 / SA516 Gr.60 Nickel Alloy Clad Plate Auto polished

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech or OEM
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0043

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 35000tons/Year
Contact Now
Detailed Product Description
Cladding Material: N10675 (B-3) Base Material: SA516 Gr.60

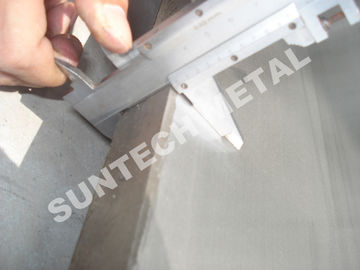

Size: (3+22)*1600*3000mm Production Code: ASTM B265, ASME SB265

N10675 (B-3)/SA516 Gr.60 Nickel Alloy Clad Plate for Anti-corrosion Application



Explosion Bonded / Bimetallic / Nickel Cladded Plate



Flying Layer:N10675 (B-3)

Base Layer:SA516 Gr.60

Size:(3+22)*1600*3000mm

Edge Treatment: Plasma cutting

Surface Treatment: Auto polished

Packing:seaworthy packing

Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.





Table for available type of Nickel alloy clad plates:



Product Names:

Nickel & Nickel Alloy Clad Plate/Sheet,  Nickel & Nickel Alloy Clad Plate/ Tube Plate

Production Codes:

ASTM B265, ASME SB265, DIN , BS, JIS, GB/T, ISO, etc.

Nickel Grades:

ASME B127, ASME B162, ASME A164 UNS N02200 (Ni200), N04400 (Monel 400), N06600 (Inconel 600), N08800 (Incoloy 800), N08825 (Incoloy 825), N10276 (C276), N10675 (B-3), N06022 (C22), N06059 (C59), N06200 (C2000), N08020 (20 Alloy)

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Nickel / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Nickel / Copper (Naval Brass) Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)

Nickel / Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~14)/(2~50) x W(max W 1500) x L (max L 4000)

Titanium / Nickel Clad

Nickel and its alloy

N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc

(1.5~14)/(2~50) x W(max W 2000) x L (max L 5000)

Nickel / Carbon Steel / Nickel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(2~10) x W(max W 3000) x L(max L 6000)

Nickel / Copper / Nickel Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(6~100) x W(max W 2100) x L(max L 6000)

Nickel / Carbon Steel / Stainless Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 7000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Aluminum / Nickel / Carbon Steel Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Aluminum / Nickel / Copper Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1-10)/(1-5)/(6-100) x W(max W 1000) x L(max L 1000)

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Kitchenware, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.





Product advantage:

-Clad plates provide an economical solution for chemical processing;

- Corrosion resistance;

- Technical consulting on material, thickness suggestion, welding, NDE, etc.
