SB265 Gr.1 Zirconium Tantalum Clad Plate Waterjet Cutting Edge Treatment

China SB265 Gr.1 Zirconium Tantalum Clad Plate Waterjet Cutting Edge Treatment supplier

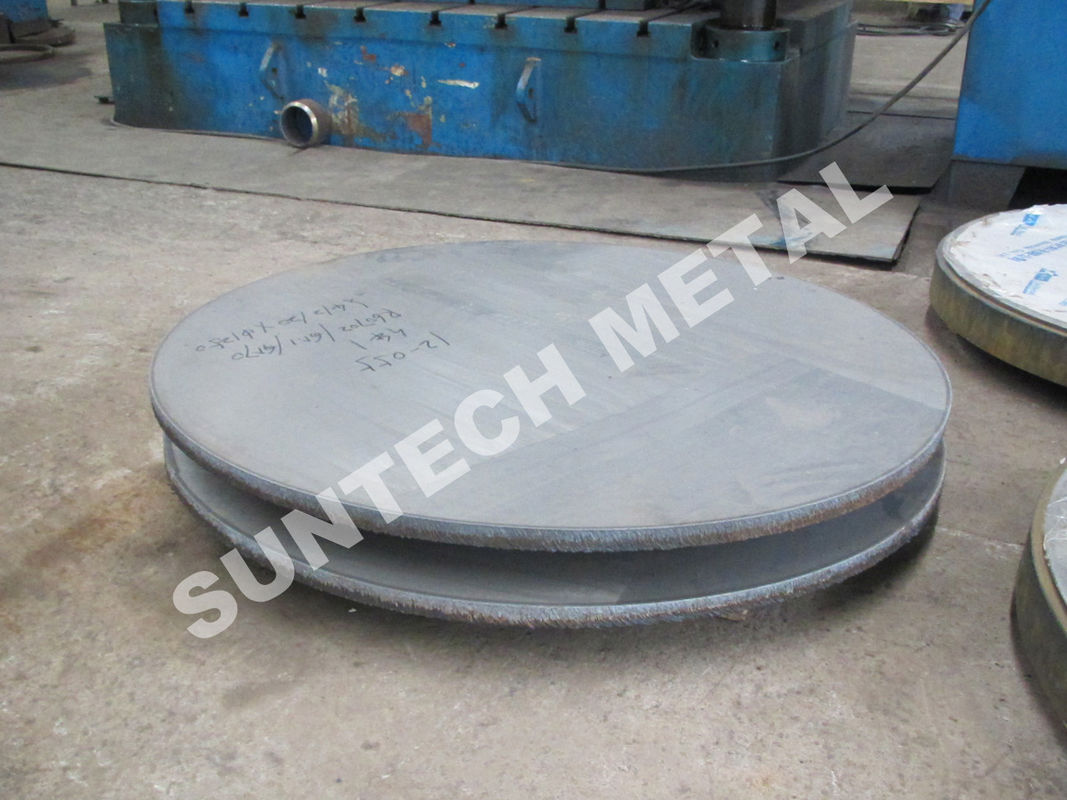

Large Image :  SB265 Gr.1 Zirconium Tantalum Clad Plate Waterjet Cutting Edge Treatment

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech or OEM
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0045

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 35000tons/Year
Contact Now
Detailed Product Description
Cladding Material: R60702 Base Material: SA516 Gr.70
Size: (4+2+20)*OD1250mm Production Code: ASTM B898, ASME SB898
Edge Treatment: Waterjet Cutting Surface Treatment: Auto Polished

SB265 Gr.1 Zirconium Tantalum Clad Plate Waterjet Cutting Edge Treatment



Size: (4+2+20)*OD1250mm

Cladding metal:R60702 / Zr702

Interlay: SB265 Gr.1

Base metal:SA516 Gr.70

Production code:ASTM B898, ASME SB898

Edge Treatment:Waterjet cutting

Packing:seaworthy packing



Product advantage:

-Clad plates provide an economical solution for chemical processing;

- Highly resistant to corrosion by alkalis, acids, salt water and other agents;

- Technical consulting on material, thickness suggestion, welding, NDE, etc.



Table for available type of Zirconium clad plates:





Product Names:

Zirconium Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate

Production Codes:

ASTM B898, ASME SB898

Zirconium Grade:

R060702

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Zirconium/ Titanium/  Carbon Steel

Titanium

Gr.2

(1.5~40)/(1-5)/(6~200) x W(max W 1500) x L(max L 3000)

Carbon Steel

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Zirconium/ Titanium/  Stainless Steel (Duplex) Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~40)/(1-5)/(6~200) x W(max W 1500) x L(max L 3000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Tantalum/Zirconium /Titanium/Carbon Steel Clad

Zirconium

R060702

1.2/2/2/(6~200) x W(max W 1500) x L(max L 3000)

Titanium

Gr.2

Carbon Steel

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.







Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.



Production Procedure:





SB265 Gr.1 Zirconium Tantalum Clad Plate Waterjet Cutting Edge Treatment
