| Cladding Material: | R60702/Zr702 | Base Material: | SA516 Gr.70 |
|---|---|---|---|
| Size: | (6+2+60)*OD1600mm | Max. Size: | 28sqm |
| Production Code: | ASTM B898, ASME SB898 | Inner Surface Treatment: | Auto Polished |

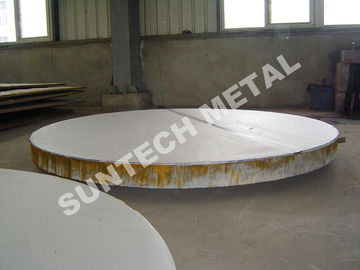

Zirconium Clad Tubesheet R60702/SB265 Gr.1/A105 for 1-Naphthol and 1-Naphthylamine Industry
Detailed Product Description:
Zirconium Cladded Plate / Explosion Bonded / Bimetallic
Flying Layer: R60702
Interlayer: SB265 Gr.1
Base Layer: A105
Size: (6+2+60)*OD1600mm
Edge Treatment: Plasma cutting
Packing: Seaworthy packing
Application: 1-Naphthol and 1-Naphthylamine Industry
Product advantage:
-Clad plates provide an economical solution for chemical processing;
- Highly resistant to corrosion by alkalis, acids, salt water and other agents;
- Technical consulting on material, thickness suggestion, welding, NDE, etc.
Table for available type of Zirconium clad plates:
|
Product Names: |
Zirconium Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate |
|||
|
Production Codes: |
ASTM B898, ASME SB898 |
|||
|
Zirconium Grade: |
R060702 |
|||
|
Form |
Description |
Base Layer |
Base Layer Grade |
Maximum Size |
|
Clad Plate |
Zirconium/ Titanium/ Carbon Steel |
Titanium |
Gr.2 |
(1.5~40)/(1-5)/(6~200) x W(max W 1500) x L(max L 3000) |
|
Carbon Steel |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
|||
|
Zirconium/ Titanium/ Stainless Steel (Duplex) Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~40)/(1-5)/(6~200) x W(max W 1500) x L(max L 3000) |
|
|
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
|||
|
Tantalum/Zirconium /Titanium/Carbon Steel Clad |
Zirconium |
R060702 |
1.2/2/2/(6~200) x W(max W 1500) x L(max L 3000) |
|
|
Titanium |
Gr.2 |
|||
|
Carbon Steel |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
|||
Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
Competitive Advantage:
1. Abundant experience in non-ferrous metal cladding and production.
With more than one decade of abundant experience in non-ferrous metal cladding and production, we provide high quality explosion bonded clad plates and clad heads with the cladding layer made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel, aluminum and other materials according to ASTM, ASME, JIS, DIN, ISO other codes. More than 20 items of inventory or practical new-type patents also provide us with strong research and technical supports for our products.
2. Professional technical consulting service provides you with assistance.
- Generate technical specification to adopt in local market
- Technical bid evaluation and clarification
- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.
- Technical consulting on material, welding, NDE, etc.
- Non-conformance solution consulting
- Others that might be requested by customer
3. Independent inspection service covers following activities.
- Technical clarification with customer
- Attend / organize pre-inspection meeting
- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection
- Final inspection on finished products
- Packing inspection
- Progress report and schedule expediting
- Other inspection might be requested by customer
4. Transportation advantage
Located close to Shanghai seaport, we enjoy shipment convenience for large-sized explosion bonded clad plates and heads.
