Zirconium Tantalum Clad Plate Ta1 / SB265 Gr.1 / Q345R for Acid Corrosion Resistance

China Zirconium Tantalum Clad Plate Ta1 / SB265 Gr.1 / Q345R for Acid Corrosion Resistance supplier

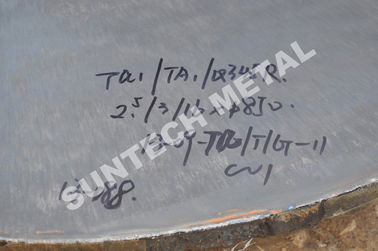

Large Image :  Zirconium Tantalum Clad Plate Ta1 / SB265 Gr.1 / Q345R for Acid Corrosion Resistance

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech or OEM
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0049

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 35000tons/Year
Detailed Product Description
Cladding Material: Ta1 Base Material: Q345R
Size: (2.5+3+16)*OD850mm Production Code: ASTM B898, ASME SB898
Edge Treatment: Waterjet Cutting Surface Treatment: Auto Polished

Zirconium Tantalum Clad Plate Ta1 / SB265 Gr.1 / Q345R for Acid Corrosion Resistance



Explosion Bonded / Bimetallic / Tantalum Cladded Plate



Flying Layer:Tantalum Ta1

Base Layer: Q235R

Size: (2.5+3+16)*OD850mm

Edge Treatment: Waterjet Cutting

Packing: Seaworthy packing



Product advantage:

-Clad plates provide an economical solution for chemical processing;

- Acids corrosion resistance;

- Completely immune to attack by aggressive aqua regia below 150 °C;

- High melting point of 3017 °C.



Table for available type of Tantalum clad plates:



Product Names:

Tantalum Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate

Production Codes:

ASTM B898, ASME SB898

Tantalum Grades:

Ta1, Ta2

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Tantalum / Copper/ Stainless Steel (Duplex) Clad

Copper

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(1~5)/(6~200) x W(max W 4110) x L(max L 7000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Tantalum / Titanium/  Stainless Steel (Duplex) Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Tantalum/Zirconium /Titanium/Carbon Steel Clad

Zirconium

R060702

1.2/2/2/(6~200) x W(max W 2000) x L(max L 3000)

Titanium

Gr.2

Carbon Steel

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.



Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.



Competitive Advantage:



1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal cladding and production;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel;

- Produced according to ASTM, ASME, JIS, DIN, ISO other codes;

- Over 20 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
