| Cladding Material: | R60702 | Base Material: | SA516 Gr.70 |
|---|---|---|---|
| Size: | (2.5+3+16)*985*1952mm | Production Code: | ASTM B898, ASME SB898 |
| Edge Treatment: | Waterjet Cutting | Surface Treatment: | Auto Polished |

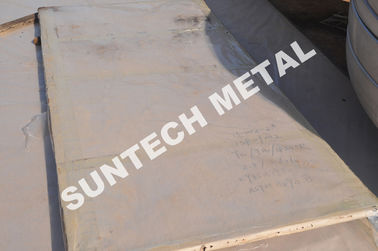

Explosion bonded Multilayed Tantalum Clad Tubesheet Ta1/SB265 Gr.1/Q345R for Condensers
Quick Product Details:
Cladding metal:Ta1
Base metal:Q345R
Size: (2.5+3+16)*985*1952mm
Production code:ASTM B898, ASME SB898
Packing: Seaworthy packing
Product advantage:
-Clad plates provide an economical solution for chemical processing;
- Acids corrosion resistance;
- Completely immune to attack by aggressive aqua regia below 150 °C;
- High melting point of 3017 °C.
Table for available type of Zirconium clad plates:
|
Product Names: |
Tantalum Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate |
|||
|
Production Codes: |
ASTM B898, ASME SB898 |
|||
|
Tantalum Grades: |
Ta1, Ta2 |
|||
|
Form |
Description |
Base Layer |
Base Layer Grade |
Maximum Size |
|
Clad Plate |
Tantalum / Copper/ Stainless Steel (Duplex) Clad |
Copper |
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc. |
(1.5~14)/(1~5)/(6~200) x W(max W 4110) x L(max L 7000) |
|
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
|||
|
Tantalum / Titanium/ Stainless Steel (Duplex) Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000) |
|
|
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
|||
|
Tantalum/Zirconium /Titanium/Carbon Steel Clad |
Zirconium |
R060702 |
1.2/2/2/(6~200) x W(max W 2000) x L(max L 3000) |
|
|
Titanium |
Gr.2 |
|||
|
Carbon Steel |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
|||
Description:
Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond. At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet. This jet contains the surface contaminants and oxides that would otherwise prevent bonding. The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.
Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
