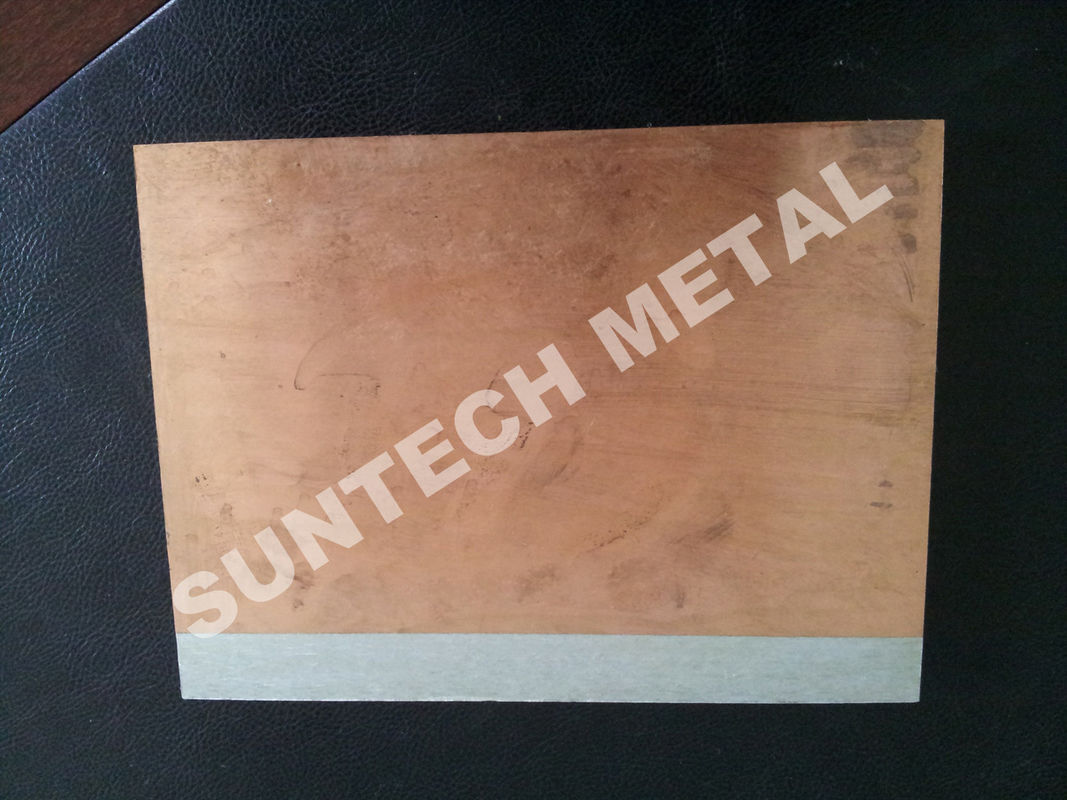

C1020 / A1050 Aluminum Copper Clad Plate , Explosion Cladded Plate
Cladding metal:A1050
Base metal:C1020
Size:(10+70)*100*20mm
Production code:ASTM B432, ASME SB432
Edge Treatment:Waterjet cutting
Packing:Seaworthy packing
Table for available type of Copper and Naval brass clad plates:
|
Product Names: |
Copper (Naval Brass) Clad Plate/Sheet, Copper (Naval Brass) Clad Tube Sheet/ Tube Plate |
|||
|
Production Codes: |
ASTM B432, ASME SB432, DIN , BS, JIS, GB/T, ISO, etc. |
|||
|
Copper Grades: |
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc. |
|||
|
Form |
Description |
Base Layer |
Base Layer Grade |
Maximum Size |
|
Clad Plate |
Copper (Naval Brass) / Carbon Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) |
|
Copper (Naval Brass)/ Stainless Steel (Duplex) Clad |
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) |
|
|
Titanium / Copper (Naval Brass) Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000) |
|
|
Copper (Naval Brass)/ Aluminum Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~14)/(6~50) x W(max W 1500) x L (max L 1500) |
|
|
Copper (Naval Brass)/ Nickel Clad |
Nickel and its alloy |
N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc |
(1.5~14)/(6~50) x W(max W 2000) x L (max L 5000) |
|
|
Copper (Naval Brass)/ Carbon Steel / Copper Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 4000) |
|
|
Copper / Titanium / Copper Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~14)/(2~100) x W(max W 2100) x L(max L 4000) |
|
|
Copper (Naval Brass)/ Carbon Steel / Stainless Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 4000) |
|
|
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
|||
|
Aluminum / Copper / Carbon Steel Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000) |
|
|
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
|||
|
Aluminum / Copper (Naval Brass)/ Aluminum Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000) |
|
Product Advantage:
-Clad plates provide an economical solution for chemical processing.
-Corrosion resistance.
-Applications with high water temperatures, chlorides present, good performance in deviating water qualities
- Technical consulting on material, thickness suggestion, welding, NDE, etc.
Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
Competitive Advantage:
|
1. Abundant experience |
- More than one decade of abundant experience in non-ferrous metal cladding and production; - Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel; - Produced according to ASTM, ASME, JIS, DIN, ISO other codes; - Over 20 items of inventory or practical new-type patents. |
|
2. Professional technical consulting service |
- Generate technical specification to adopt in local market; - Technical bid evaluation and clarification; - Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.; - Technical consulting on material, welding, NDE, etc.; - Non-conformance solution consulting; - Others that might be requested by customer. |
|
3. Independent inspection service |
- Technical clarification with customer; - Attend / organize pre-inspection meeting; - In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection; - Final inspection on finished products; - Packing inspection; - Progress report and schedule expediting; - Other inspection might be requested by customer. |
|
4. Transportation advantage |
- 296kms away from Shanghai seaport |
