A1070 / Q235B Aluminum and Carbon Steel Clad Plate for Marine

China A1070 / Q235B Aluminum and Carbon Steel Clad Plate for Marine supplier

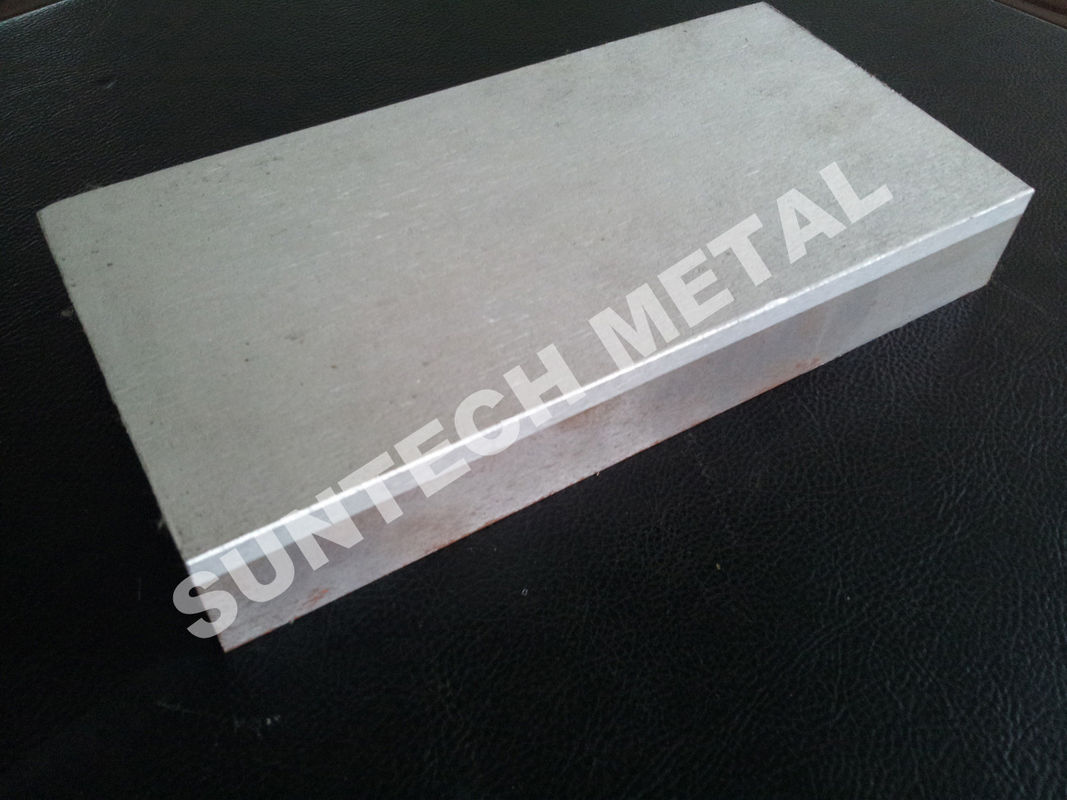

Large Image :  A1070 / Q235B Aluminum and Carbon Steel Clad Plate for Marine

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0069

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P,etc
Supply Ability: 35000tons/Year
Contact Now
Detailed Product Description
Cladding Material: A1050 Base Material: Q235B
Size: (10+80)*50*400mm Max. Size: 4sqm
Production Code: ASTM B264, ASME SB264 Surface Treatment: Auto Polished

A1070 / Q235B Aluminum and Carbon Steel Explosion Bonded Clad Plate for Marine



Quick Product Details:



Cladding metal:A1050

Base metal:Q235B

Size:(10+80)*50*400mm

Production code:ASTM B264, ASME SB264

Edge Treatment:Machining

Packing:Seaworthy packing



Table for available type of Aluminum clad plates:



Product Names:

Aluminum Clad Plate/Sheet, Aluminum Clad Tube Sheet/ Tube Plate

Production Codes:

CB-1343, DIN , BS, JIS, GB/T, ISO, etc.

Aluminum Grades:

  A1050, A1060, A1070, A1100, A5052, etc.

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Aluminum / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Copper (Naval Brass)/ Stainless Steel (Duplex) Clad

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Titanium / Copper (Naval Brass) Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)

Copper (Naval Brass)/ Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~14)/(6~50) x W(max W 1500) x L (max L 1500)

Copper (Naval Brass)/ Nickel Clad

Nickel and its alloy

N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc

(1.5~14)/(6~50) x W(max W 2000) x L (max L 5000)

Copper (Naval Brass)/ Carbon Steel /  Copper Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 4000)

Copper / Titanium / Copper Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~14)/(2~100) x W(max W 2100) x L(max L 4000)

Copper (Naval Brass)/ Carbon Steel / Stainless Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 4000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Aluminum / Copper / Carbon Steel Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000)

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Aluminum / Copper (Naval Brass)/ Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000)



Production Procedure:



A1070 / Q235B Aluminum and Carbon Steel Clad Plate for Marine
