N10276 C276 Nickel Alloy Clad Plate 28sqm Max. Size for Reboile

China N10276 C276 Nickel Alloy Clad Plate 28sqm Max. Size for Reboile supplier

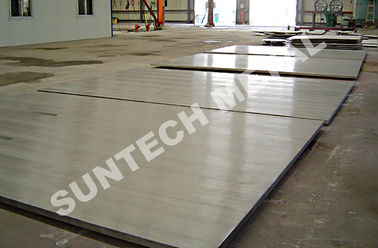

Large Image :  N10276 C276 Nickel Alloy Clad Plate 28sqm Max. Size for Reboile

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0036

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P,etc
Supply Ability: 35000tons/Year
Contact Now
Detailed Product Description
Size: (4+45)*3500*4700mm Max. Size: 28sqm
Production Code: ASTM B265, ASME SB265 Surface Treatment: Auto Polished

Explosion Bonded N10276 (C276) /SA516 Gr.70 Nickel Alloy Clad Plate for Reboiler for Anti-corrosion Application



Detailed Product Description:



Explosion Bonded / Bimetallic / Nickel Cladded Plate



Flying Layer:N10276 (C276)

Base Layer:SA516 Gr.70

Size:(4+45)*3500*4700mm

Edge Treatment: Waterjet Cutting

Packing: Seaworthy packing

Application: Anti-corrosion application



Description:



Clad plates provide an economical solution for chemical processing. Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond. At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet. This jet contains the surface contaminants and oxides that would otherwise prevent bonding. The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.



Table for available type of Nickel alloy clad plates:



Product Names:

Nickel & Nickel Alloy Clad Plate/Sheet,  Nickel & Nickel Alloy Clad Plate/ Tube Plate

Production Codes:

ASTM B265, ASME SB265, DIN , BS, JIS, GB/T, ISO, etc.

Nickel Grades:

ASME B127, ASME B162, ASME A164 UNS N02200 (Ni200), N04400 (Monel 400), N06600 (Inconel 600), N08800 (Incoloy 800), N08825 (Incoloy 825), N10276 (C276), N10675 (B-3), N06022 (C22), N06059 (C59), N06200 (C2000), N08020 (20 Alloy)

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Nickel / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Nickel / Copper (Naval Brass) Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)

Nickel / Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~14)/(2~50) x W(max W 1500) x L (max L 4000)

Titanium / Nickel Clad

Nickel and its alloy

N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc

(1.5~14)/(2~50) x W(max W 2000) x L (max L 5000)

Nickel / Carbon Steel / Nickel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(2~10) x W(max W 3000) x L(max L 6000)

Nickel / Copper / Nickel Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(6~100) x W(max W 2100) x L(max L 6000)

Nickel / Carbon Steel / Stainless Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 7000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Aluminum / Nickel / Carbon Steel Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Aluminum / Nickel / Copper Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1-10)/(1-5)/(6-100) x W(max W 1000) x L(max L 1000)

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Kitchenware, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.







Competitive Advantage:





Competitive Advantage

1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal cladding and production;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel;

- Produced according to ASTM, ASME, JIS, DIN, ISO other codes;

- Over 20 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
