Chemical Process Equipment Inconel 600 Cyclone Separator for Fluorine

China Chemical Process Equipment Inconel 600 Cyclone Separator for Fluorine supplier

Large Image :  Chemical Process Equipment Inconel 600 Cyclone Separator for Fluorine

Product Details:

Place of Origin: China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: PV0023

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: 90 working days after received payment
Payment Terms: L/C, T/T, D/P, etc
Supply Ability: 300 Pieces/Year
Detailed Product Description
Material: Inconel600 Media: Non-Toxic
Structure: Cyclone Separator Length: 5000mm
Diameter: 2000mm Weight: 8Tons
Other Available Materials: Nickel & Nickel Alloy, Copper-Nickel Alloy, Tantalum Packing: Seaworthy Packing

Chemical Process Equipment Inconel 600 Cyclone Separator for Fluorine



1.Product Description



Material  Inconel600
Dimension OD2000*Length 5000mm
Weight 8 tons
Media Non-Toxic
Pressure  High:0.1MPa-1.6 Mpa
Other Available Materials Titanium & Titanium alloy, Stainless Steel,  Zirconium, Tantalum

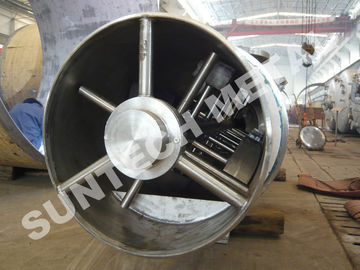

Cyclone separator is mainly composed of three parts, namely: the main cylinder, vortex tube, the catch fog device.

Cyclone separation is the use of air in the rotation process of centrifugal force will quality is greater than the gas and solid particles or liquid separation.

Multi cyclone is suitable for processing the big flow gas, and keeps high separation efficiency, which can effectively avoid the gas liquid back mixing phenomena, mainly used in gas liquid separation and fluid gas-solid separation

Cyclone separator is mainly composed of three parts, namely: the main cylinder, vortex tube, the catch fog device.

Cyclone separation is the use of air in the rotation process of centrifugal force will quality is greater than the gas and solid particles or liquid separation.

Multi cyclone is suitable for processing the big flow gas, and keeps high separation efficiency, which can effectively avoid the gas liquid back mixing phenomena, mainly used in gas liquid separation and fluid gas-solid separation



Standard specification for our popular products:



Item

Item Name

Code

1

Heat Exchanger

TEMA,ASME,EN13445,PED

2

Tower

ASME,EN13445,PED

3

Vessel

ASME,EN13445,PED

4

Storage Tank

API620,650

5

Reactor

ASME,EN13445,PED





2.Manufacturing Facilities (Partial)



Chemical Process Equipment Inconel 600 Cyclone Separator for Fluorine



3. Plant picture  (Partial)



Chemical Process Equipment Inconel 600 Cyclone Separator for Fluorine



4.  Certificate(Partial)


Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.





5. Competitive Advantage



1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal process equipment designing and fabrication;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel, and their clad metals;

- Design and fabricate according to ASME U, PED, TEMA, API620,API650,EN13445

- 12 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
