Product Details:
Payment & Shipping Terms:
|
| Tube Material: | Alloy C-276 | Tubesheet Material: | Alloy C-276/ F304 |
|---|---|---|---|
| Pressure: | 0.1MPa – 3.6 Mpa | Media: | Toxic |
| Structure: | Floating Head | Length: | 8000mm |
| Diameter: | 2500mm | Surface:: | 960 Sqm |
| Weight: | 35 Tons | Other Available Materials: | Titanium & Titanium Alloy, Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum |

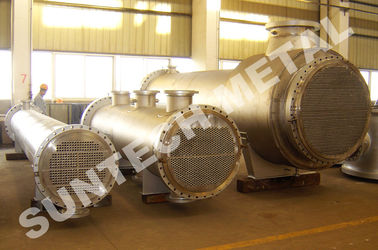

Nickel Alloy C-276 Floating Head Type Heat Exchanger Condenser 2500mm Diameter
1. Product Description
| Item Name | C276 Nickel Alloy Floating Head Heat Exchanger |
| Application | Acetic Acid |
| Tubesheet: | Alloy C276 |
| Tube Material | Alloy C276 |
| Shell Material | Alloy C276 |
| Diameter | 2500mm |
| Length | 8000mm |
| Surface | 960 sqm |
| Working Temp | 310℃ |
| Weight | 35tons |
| Other Available Materials | Titanium , Titanium alloy,Stainless Steel(Duplex), Copper-Nickel Alloy, Zirconium, Tantalum |
This floating head heat exchanger is a good crossion resistance device or unit used to condense a substance from its gaseous to its liquid state, by cooling it. In so doing, the latent heat is given up by the substance, and will transfer to the condenser coolant. Condensers are typically heat exchangers which have various designs and come in many sizes ranging from rather small to very large industrial-scale units used in plant processes.
This product have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection, by Global Top 50 Chemicals for one decade.
2. Production Corner
3. Plants picture (Partial)
4. Certificate
Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.
5. Competitive Advantage
b. Technical consulting service: technical consulting on material, welding, NDE, etc;
c. Independent inspection service; in-process inspection, final inspection;
d. Transportation advantage: 296kms away from Shanghai seaport
