Tube Sheet Material: | Titanium Gr.2 Clad SA266 | Tube Material: | Titanium Gr.2 |
---|---|---|---|
Pressure: | 1.6MPa-10Mpa | Media: | Toxic |
Structure: | Shell And Tube Heat Exchanger | Length: | 7000mm |
Diameter: | 800mm | Surface:: | 120sqm |
Weight: | 8 Tons | Other Available Materials: | Stainless Steel (Duplex), Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum |

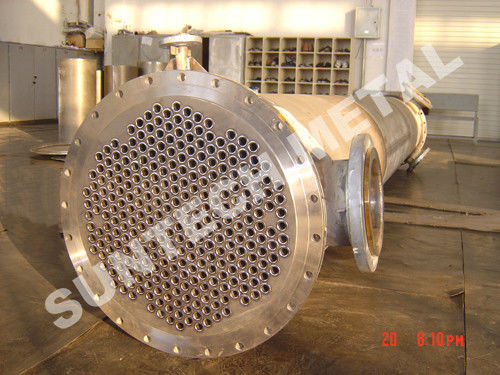

Shell Tube Heat Exchanger Chemical Process Equipment 1.6MPa - 10Mpa
1. Product Description
Application | Paper and Pulping |
Tube Material | Titanium Gr.2 |
Tubesheet Material | Titanium Gr.2/SA266 |
Volume | 3500L |
Dimension | Dia. 800* Length 7000mm*Surface 120 sqm |
Weight | 8tons |
Other Available Materials | Stainless Steel, Zirconium, Tantalum |
This heat exchanger is a device used to transfer heat between one or more fluids. The fluids may be separated by a solid wall to prevent mixing or they may be in direct contact.
They are widely used in space heating, refrigeration, air conditioning, power stations, chemical plants, petrochemical plants, petroleum refineries, natural-gas processing, and sewage treatment. The classic example of a heat exchanger is found in an internal combustion engine in which a circulating fluid known as engine coolant flows through radiator coils and air flows past the coils, which cools the coolant and heats the incoming air
Product advantage: (Ti Vessel)
- Corrosion resistance.
- Highly resistant to corrosion in sea water, aqua regia and chlorine.
- Slow to react with water and air, as it forms a passive and oxide coating that protects the bulk metal from further oxidation.
2. Workshop Corner
3. Option test&Inspection items
1). PMI Positive Material Identification
2). UT Ultrasonic testing
3). PT Penetrate testing
4). RT Radiographic testing
5). Interlayer temp measurement
6). Helium leakage test
7). MT Magnetic particle testing
8). Heat cycle testing
9). Hydraulic testing
10). Coating thickness testing
4. Certificate(Partial)
Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.
