Product Details:
Payment & Shipping Terms:
|
Tube Material: | S31803 Duplex Stainless Steel | Tubesheet Material: | S31803 Duplex Stainless Steel |
---|---|---|---|
Pressure: | 0.1MPa – 3.6 Mpa | Media: | Toxic |
Structure: | Rising Thin Film Evaporator | Length: | 6000mm |
Diameter: | 400mm | Surface:: | 670 Sqm |
Weight: | 4 Tons | Other Available Materials: | Titanium & Titanium Alloy, Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum |

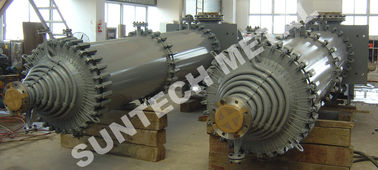

Duplex Stainless Steel Thin Film Evaporation for NMB , rising film evaporator
1. Product Description
Item Name | Climbing Film Evaporator For NMB Application |
Application | MDI Industry |
Tube Material | S31803 Duplex Stainless Steel |
Shell Material | S31803 Duplex Stainless Steel |
Diameter | 400mm |
Length | 6000mm |
Surface | 670 sqm |
Weight | 4tons |
Other Available Materials | Titanium & Titanium alloy, Nickel & Nickel alloy, Copper-Nickel Alloy, Zirconium, Tantalum |
Rising thin film evaporator, also known as climbing thin film evaporator, which is operated according to the principle of siphonal pump. Based on the rising power of the vapor air bladder generated from the boiling process, liquid and vapor concurrently flow upwards, at the same time, with the rising amount of vapor, a flowing film generated on the tube wall, that is namely “climbing”, The movement of concurrent upwards is helpful to produce high-speed on flow.
It is the rising thin film evaporator’s feature that it has a long heating tube (around 5~7m), and the differential temperature between the heating box and boiling box should be wide as well, or the energy generated by vapor flow will be insufficient to feed liquid and form climbing film.
2. Production Process
3. Workshop
