410S Pressure Vessel Clad Head

Good quality Double Tube Sheet Heat Exchanger for sales
Good quality Double Tube Sheet Heat Exchanger for sales
The clad plates and heads have been mounted on our local site. Our owner is very satisifed with the quality. It is a pleasure working with you!

—— Adrian

The vessels arrived in our factory on March 26, and are already installed. We are grateful for your delivery of 2 weeks in advance and saved our time!

—— Virgile

I'm Online Chat Now

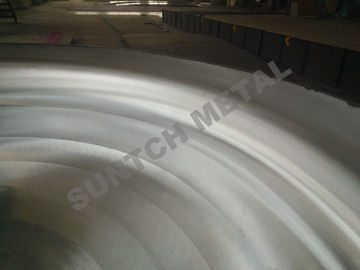

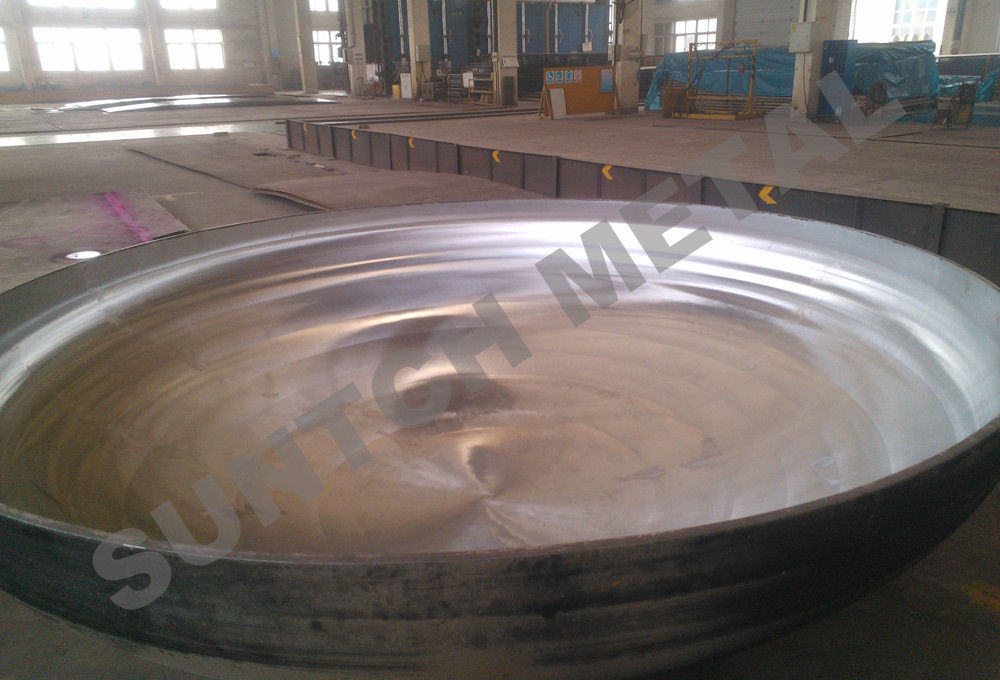

410S Pressure Vessel Clad Head

China 410S  Pressure Vessel Clad Head supplier

Large Image :  410S Pressure Vessel Clad Head

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: E003

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 35000tons/Year
Detailed Product Description
Size: (3.2+12.7)*ID3048*SF50.8mm Shape: 2:1 Elliptical Head
Cladding Material: 410S Base Material: 16MnR (A516 Gr.70)
Size Available: Φ 400~Φ 10000mm Production Code: UG-81
Storage Medium: Nontoxic Inner Surface Treatment: Auto Polished

410S Martensitic Stainless Steel and Carbon Steel Pressure Vessel Clad Head



Table for available type of clad heads and cladded metals:



Product Names:

Explosion Bonded Clad Head for Pressure Vessels

Production Codes:

ASME UG-81, etc.

Type

Abbreviation

Available Clad Metals

 Production Method

Elliptical clad head

EHA, EHB

Titanium & Steel Clad

Ferritic Stainless Steel & Steel Clad

Austenitic (Duplex) Stainless Steel & Steel Clad

Nickel Alloy & Steel Clad

Zirconium & Steel Clad

Tantalum & Steel Clad

Copper & Steel Clad

Cold Pressing, Hot Pressing, Hot Spinning

Standard Flange&Dished

DHA, DHB

Dish only

PSH,SHD

Flange reverse dished

WD

Joggled head

DHD

Conical

CHA,CHB,CHC,CHD

Flange only

FH

Hemispherical

HH

Shallow Flange& Dished

MD,XD

Approximate Elliptical

AH

Dished and Flared

DF



Description:

Clad heads provide an economical solution for chemical processing. Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond. At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet. This jet contains the surface contaminants and oxides that would otherwise prevent bonding. The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.





Competitive Advantage:



1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal cladding and production;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel;

- Produced according to ASTM, ASME, JIS, DIN, ISO other codes;

- Over 20 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
