SA516 Gr.70 Chemical Process Equipment

China SA516 Gr.70 Chemical Process Equipment supplier

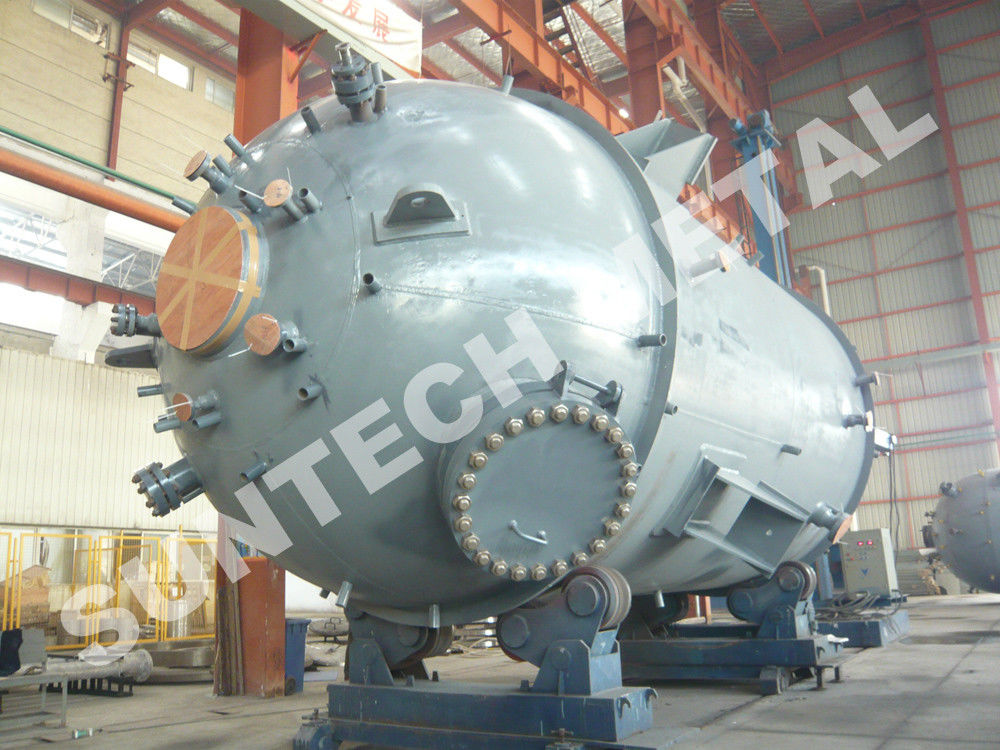

Large Image :  SA516 Gr.70 Chemical Process Equipment

Product Details:

Place of Origin: China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: PV0021

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: 90 working days after received your payment
Payment Terms: L/C, T/T, D/P, etc
Supply Ability: 300 Pieces/Year
Detailed Product Description
Material: Zr702/SA516 Gr.70 Half Pipe Material: Alloy C-22/ 304
Pressure: 1.6MPa-10MPa Media: Highly Toxic
Structure: Generating Reactor Length: 8000mm
Diameter: 3500mm Application: Chemical Engineering
Weight: 30Tons Other Available Materials: Titanium & Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum

Chemical Process Equipment Zirconium 702 Agitating Main Reactor for  Acetic Acid



1.Product Description



Material  Zr702/SA516 Gr.70
Dimension OD3500*Length 8000mm
Weight 30tons
Media Highly Toxic
Pressure  High:1.6MPa-10 Mpa
Other Available Materials Titanium & Titanium alloy, Stainless Steel,  Zirconium, Tantalum



Chemical reactors are vessels designed to contain chemical reactions. One example is a pressure reactor. The design of a chemical reactor deals with multiple aspects of chemical engineering. Chemical engineers design reactors to maximize net present value for the given reaction. Designers ensure that the reaction proceeds with the highest efficiency towards the desired output product, producing the highest yield of product while requiring the least amount of money to purchase and operate.



Product advantage: (Zr Vessel)
- Highly resistant to corrosion by alkalis, acids, salt water and other agents;
- Design and fabricate according to ASME U, PED, TEMA, API650, EN13445;
- Technical consulting on material, type selection, welding, NDE, etc.



Standard specification for our popular products:



Item

Item Name

Code

1

Heat Exchanger

TEMA,ASME,EN13445,PED

2

Tower

ASME,EN13445,PED

3

Vessel

ASME,EN13445,PED

4

Storage Tank

API620,650

5

Reactor

ASME,EN13445,PED





2.  Certificate(Partial)


Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.





3. Competitive Advantage



1.Abundant experience: more than one decade of abundant experience in non-ferrous metal    cladding and production;
2. Technical consulting service:  technical consulting on material, welding, NDE, etc;
3. Independent inspection service; in-process inspection, final inspection;
4. Transportation advantage: 296kms away from Shanghai seaport.
