S31803 Duplex Stainless Steel Floating Head Heat Exchanger ISO / SGS

Good quality Double Tube Sheet Heat Exchanger for sales
Good quality Double Tube Sheet Heat Exchanger for sales
The clad plates and heads have been mounted on our local site. Our owner is very satisifed with the quality. It is a pleasure working with you!

—— Adrian

The vessels arrived in our factory on March 26, and are already installed. We are grateful for your delivery of 2 weeks in advance and saved our time!

—— Virgile

I'm Online Chat Now

S31803 Duplex Stainless Steel Floating Head Heat Exchanger ISO / SGS

China S31803 Duplex Stainless Steel Floating Head Heat Exchanger ISO / SGS supplier

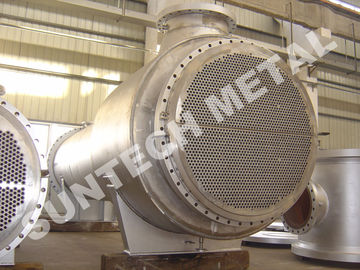

Large Image :  S31803 Duplex Stainless Steel Floating Head Heat Exchanger ISO / SGS

Product Details:

Place of Origin: China
Brand Name: Suntech
Certification: U Stamp, PED, ISO, SGS, NB
Model Number: PV0127

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: 90 working days after received your payment
Payment Terms: L/C, T/T, D/P, etc
Supply Ability: 300 Pieces/Year
Detailed Product Description
Tube Material: S31803 Duplex Stainless Steel Tubesheet Material: S31803 Duplex Stainless Steel
Pressure: 0.1MPa – 3.6 Mpa Media: Toxic
Structure: Floating Head Length: 8000mm
Diameter: 2500mm Surface:: 960 Sqm
Weight: 35 Tons Other Available Materials: Titanium & Titanium Alloy, Nickel & Nickel Alloy, Copper-Nickel Alloy, Zirconium, Tantalum

S31803 Duplex Stainless Steel Floating Head Heat Exchanger ISO / SGS



1. Product Description



Item Name S31803 Duplex Stainless Steel Floating Head Heat Exchanger
Application Acetic Acid
Tubesheet: S31803 Duplex Stainless Steel
Shell Material S31803 Duplex Stainless Steel
Media  Toxic
Diameter 2500mm
Length 8000mm
Surface 960 sqm
Working Temp 310℃
Weight 35tons
Other Available Materials Titanium & Titanium alloy,Stainless Steel(Duplex), Copper-Nickel Alloy, Zirconium, Tantalum



This floating head heat exchanger is a good crossion resistance device or unit used to condense a substance from its gaseous to its liquid state, by cooling it. In so doing, the latent heat is given up by the substance, and will transfer to the condenser coolant. Condensers are typically heat exchangers which have various designs and come in many sizes ranging from rather small to very large industrial-scale units used in plant processes.

This product have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection, by Global Top 50 Chemicals for one decade.



2.  Production corner

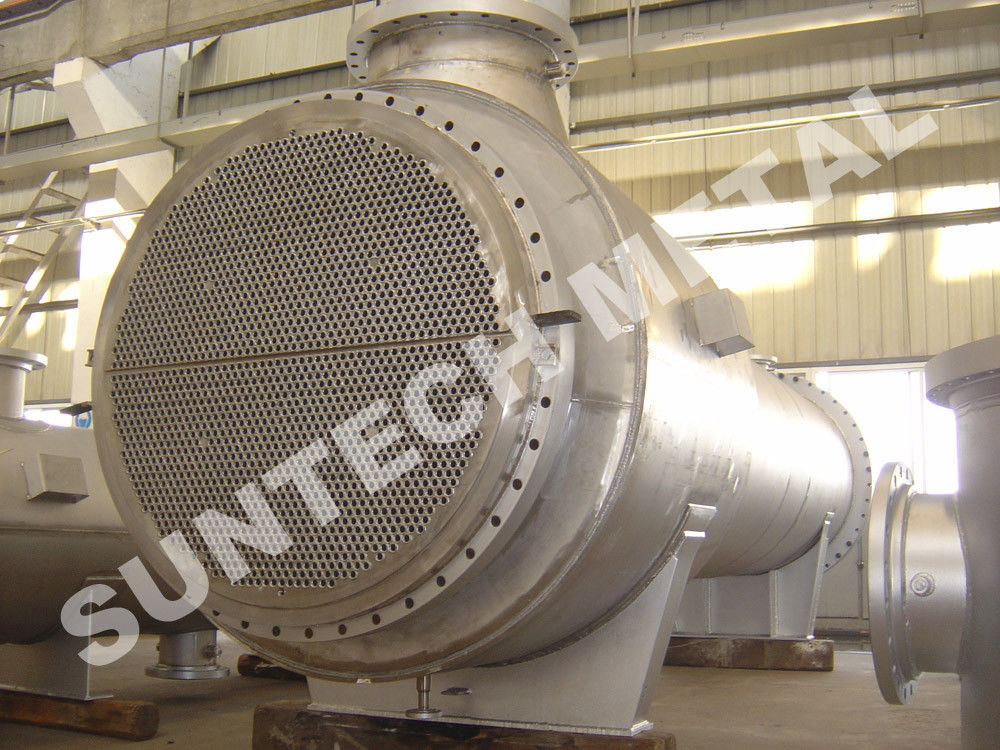

S31803 Duplex Stainless Steel Floating Head Heat Exchanger ISO / SGS





3. Plants picture  (Partial)

S31803 Duplex Stainless Steel Floating Head Heat Exchanger ISO / SGS
