Payment & Shipping Terms:
|Cladding Material:||316L/31603||Base Material:||A516 Gr.70N|
|Size:||(5+45)*2300*5000mm||Production Code:||ASTM B264, ASME SB264|
|Edge Treatment:||Waterjet Cutting||Surface Treatment:||Auto Polished|

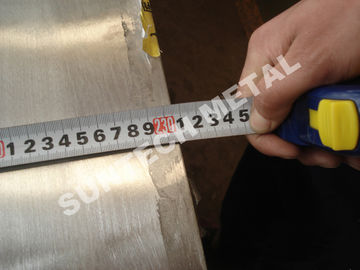

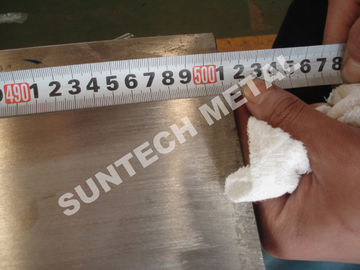

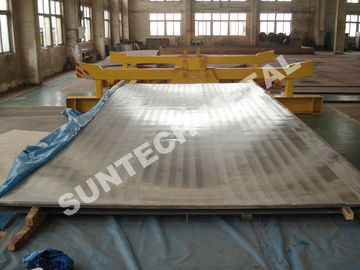

Austeninic Stainless Steel 316L 31603 / 516 Gr.70 Square Clad Plate for Column
Quick Product Details:
Explosion Bonded / Bimetallic / Cladded Plate / for chemical process equipment
Cladding metal: 316L/31603
Base metal: A516 Gr.70N
Packing: seaworthy packing
Explosion Cladding Features:
Clad plates provide an economical solution for chemical processing. Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond. At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet. This jet contains the surface contaminants and oxides that would otherwise prevent bonding. The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
1. Abundant experience
- More than one decade of abundant experience in non-ferrous metal cladding and production;
- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel;
- Produced according to ASTM, ASME, JIS, DIN, ISO other codes;
- Over 20 items of inventory or practical new-type patents.
2. Professional technical consulting service
- Generate technical specification to adopt in local market;
- Technical bid evaluation and clarification;
- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;
- Technical consulting on material, welding, NDE, etc.;
- Non-conformance solution consulting;
- Others that might be requested by customer.
3. Independent inspection service
- Technical clarification with customer;
- Attend / organize pre-inspection meeting;
- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection;
- Final inspection on finished products;
- Packing inspection;
- Progress report and schedule expediting;
- Other inspection might be requested by customer.
4. Transportation advantage
- 296kms away from Shanghai seaport
