N06600 Inconel 600 / SA266 Nickel Alloy Clad Plate Tubesheet for Condenser

China N06600 Inconel 600 / SA266 Nickel Alloy Clad Plate Tubesheet for Condenser supplier

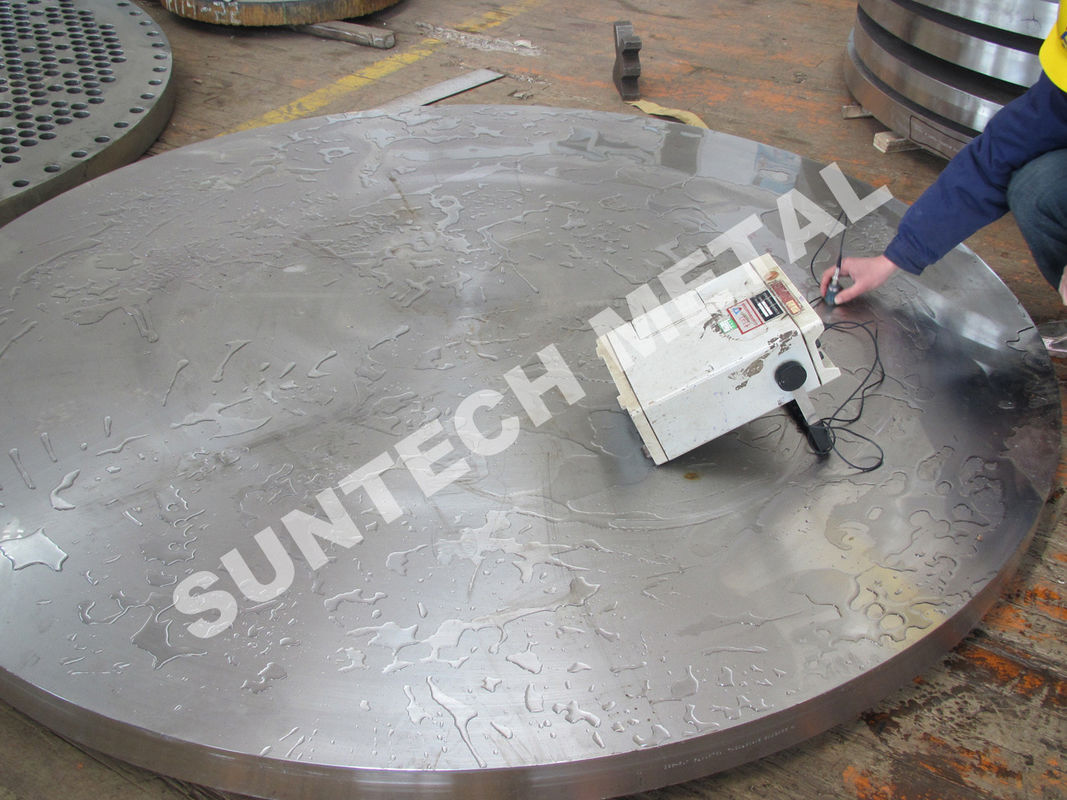

Large Image :  N06600 Inconel 600 / SA266 Nickel Alloy Clad Plate Tubesheet for Condenser

Product Details:

Place of Origin: P.R.China
Brand Name: Suntech
Certification: EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Model Number: E0040

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Seaworthy packing
Delivery Time: 60 working days after received your payment
Payment Terms: L/C, D/A, T/T, D/P, etc
Supply Ability: 35000tons/Year
Detailed Product Description
Cladding Material: N06600 (Inconel 600) Base Material: A266
Max. Size: 28sqm Production Code: ASTM B265, ASME SB265

N06600 (Inconel 600)/ SA266 Nickel Alloy Clad Plate Tubesheet for Condenser


Explosion Bonded / Bimetallic / Nickel Cladded Tubesheet



Flying Layer: N06600 (Inconel 600)

Base Layer:SA266

Size:(6+46)*OD1950mm

Surface treatment:Auto Polished

Edge Treatment: Waterjet cutting

Packing: seaworthy packing




Table for available type of Nickel Alloy clad plates:



Product Names:

Nickel & Nickel Alloy Clad Plate/Sheet,  Nickel & Nickel Alloy Clad Plate/ Tube Plate

Production Codes:

ASTM B265, ASME SB265, DIN , BS, JIS, GB/T, ISO, etc.

Nickel Grades:

ASME B127, ASME B162, ASME A164 UNS N02200 (Ni200), N04400 (Monel 400), N06600 (Inconel 600), N08800 (Incoloy 800), N08825 (Incoloy 825), N10276 (C276), N10675 (B-3), N06022 (C22), N06059 (C59), N06200 (C2000), N08020 (20 Alloy)

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Nickel / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Nickel / Copper (Naval Brass) Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)

Nickel / Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~14)/(2~50) x W(max W 1500) x L (max L 4000)

Titanium / Nickel Clad

Nickel and its alloy

N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc

(1.5~14)/(2~50) x W(max W 2000) x L (max L 5000)

Nickel / Carbon Steel / Nickel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(2~10) x W(max W 3000) x L(max L 6000)

Nickel / Copper / Nickel Clad

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

(1.5~14)/(6~100) x W(max W 2100) x L(max L 6000)

Nickel / Carbon Steel / Stainless Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 7000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Aluminum / Nickel / Carbon Steel Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Aluminum / Nickel / Copper Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1-10)/(1-5)/(6-100) x W(max W 1000) x L(max L 1000)

Copper, Naval Brass

C10100, C10200,  C11000, C26200, C28000, C46400, C70600, C71500, etc.

Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Kitchenware, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.





Competitive Advantage:

1. Abundant experience in non-ferrous metal cladding and production.
With more than one decade of abundant experience in non-ferrous metal cladding and production, we provide high quality explosion bonded clad plates and clad heads with the cladding layer made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel, aluminum and other materials according to ASTM, ASME, JIS, DIN, ISO other codes. More than 20 items of inventory or practical new-type patents also provide us with strong research and technical supports for our products.

2. Professional technical consulting service provides you with assistance.
- Generate technical specification to adopt in local market
- Technical bid evaluation and clarification
- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.
- Technical consulting on material, welding, NDE, etc.
- Non-conformance solution consulting
- Others that might be requested by customer

3. Independent inspection service covers following activities.
- Technical clarification with customer
- Attend / organize pre-inspection meeting
- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection,  Welding inspection,  NDE inspection,  Coating inspection
- Final inspection on finished products
- Packing inspection
- Progress report and schedule expediting
- Other inspection might be requested by customer

4. Transportation advantage
Located close to Shanghai seaport, we enjoy shipment convenience for large-sized explosion bonded clad plates and heads.
